Avon RB1000CR Centurion Road Blocker

RB1000CR Centurion Road Blocker

The RB1000CR Centurion Road Blocker is a crash tested ASTM 2656 (M50 P1) road blocker and is HCIS compliant (see options) with 1000mm raised height blocking segment.

Avon RB1000CR provides a high level of security against unauthorised vehicle access.

Developed and manufactured by engineers with significant experience in the fields of physical security and vehicle access control, it is a highly dependable security product that will easily interface with a wide range of control equipment.

Assembled in our fabrication facilities using heavy gauge materials to give maximum strength and durability, the RB1000CR Road Blocker is an ideal product to protect high security establishments, iconic buildings and critical infrastructure.

RB1000CR Centurion Road Blocker, ASTM, (M50 P1), HCIS, crash tested,
ASTM 50 P1 Road blocker impact tested

Key features & benefits

Features

  • Physically impact tested ASTM F2656-07 M50 P1
  • Manufactured from heavy gauge materials
  • Manual hand pump facility
  • Programmable logic control system
  • 100% duty cycling
  • Fully clad base



Benefits

  • Confidence in proven performance
  • Strength and durability
  • Operational under power failure conditions
  • Flexibility to interface with all forms of access control
  • Reliable and dependable
  • Simple to install

Product overview

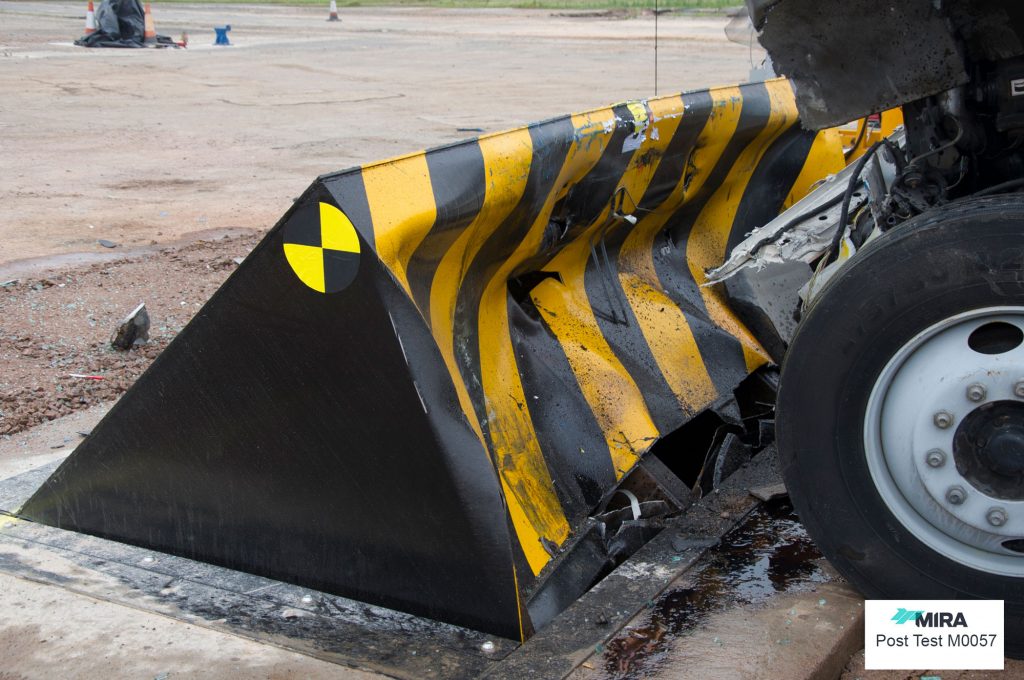

Physically impact tested in accordance with the US standard ASTM F2656-07 by the Motor Industry Research Association (MIRA), achieving an M50 P1 rating and remaining operational after impact.

The blocker has a 1000mm high blocking segment and is designed as a Hostile Vehicle Mitigation (HVM) solution providing protection to sites from extreme Vehicle Borne Improvised Explosive Device (VBIED) attack.

The road blocker comes with a push-button control as standard, however it can be customised to interface with a wide range of access control equipment to suit specific customer requirements (available as options).

The blocker is also available as an optional HCIS Road Blocker specifically designed to comply with the Kingdom of Saudi Arabia’s (KSA) Ministry of Interior, HCIS Security Directives Sec 06 4.3.3 for crash barriers.

The road blocker can be customised to interface with a wide range of access control equipment to suit specific customer requirements. Available configurations include (but are not limited to) inductive loop systems, card readers, communication equipment and manned guard emergency systems.

This is a specialist high security product and is designed for use with vehicles only and a full site risk assessment must be carried out at design stage to ensure that all relevant safety systems are included. Where the blockers control point is remote from the installation, we strongly recommend the fitting of a recordable CCTV system. For safety reasons pedestrians, cyclists and motorcycles should not to use a blocker controlled roadway.



Oil and Gas high security

Options available

  • Fully compliant HCIS road blocker
  • Emergency fast raise system
  • Emergency buttons with lock down
  • LPS 1175 cabinets available for HPU
  • Speed of operation 3-5 Seconds
  • Access and intercom systems
  • UPS backup for the electrical system
  • Interlocking systems to give air-lock type protection on sites with higher threat levels
  • Operating temperatures & environments
  • Inductive loop systems
  • Traffic lights and back-indications systems
  • Integral inset warning lights in blocking segment
  • Accumulator systems (fail secure) for hydraulic operation in power failure conditions

Technical Specification

Physical Dimensions:
3m Road Blocker:3508mm W x 2015mm D x 1280mm H
HPU Cabinet:640/940mm W x 670mm D x 1300mm H
Raised height of blocking segment:1000mm
Blocker widths available:2-6 metres in 500mm increments
Basic Power requirements:3-Phase 380/415v AC, 50/60Hz
Control Voltage:S.E.L.V 24V
Performance:Loading 30 Tonnes
ASTM Classification: ASTM F2656-07 M50 P1
Tested Model:3m blocking segment 1000 mm high blocking segment (raised)
Speed of operation:6 Seconds to raise or lower (alternative speeds available)
Emergency Fast Operation (EFO) (option):<1.5 seconds to raise
Operating temperature range available (option):-25°C – +75°C
Operating humidity range available (option):5% to 100% (non condensing)
Construction:The supporting framework is constructed from fully welded, heavy gauge, high strength, structural steels completely encased with steel sheets to provide a self-shuttered module. Sub-surface fixing points ensure the blocker is completely secured to its foundation. It is constructed from steel that complies with ASTM A514/517* *Or European equivalent EN standards.



RB1000CR Centurion Road Blocker - Resources

Datasheet – Avon RB1000CR Centurion Road Blocker
Format: pdf

Datasheet for RB1000CR Chieftain Road Blocker, ASTM 2656-07 crash tested Hostile Vehicle Mitigation (HVM) Solution

Specification – Avon RB1000CR Centurion Road Blocker
Format: pdf

Procurement Specification for a ASTM 2656-07 High Security Road Blocker (HSRB)

Drawings – Avon RB1000CR Centurion Road Blocker
Format: pdf

General PDF Drawings for Avon RB1000CR Centurion Road Blocker, an ASTM 2656-07 crash tested blocker providing a high level of security against unauthorised vehicle access.

Drawings – Avon RB1000CR Centurian Road Blocker CAD Foundation & HPU Drawing (dwg)
Format: dwg

Drawings – Avon RB1000CR Centurian Road Blocker CAD Foundation & HPU Drawing (dwg)

Drawings – Avon RB1000CR Centurian Road Blocker CAD Foundation Drawing (dwg)
Format: dwg

Drawings – Avon RB1000CR Centurian Road Blocker CAD foundation illustration (dwg)

Drawings – Avon RB1000CR Centurian Road Blocker CAD Rebar Drawing (dwg)
Format: dwg

Drawings – Avon RB1000CR Centurian Road Blocker CAD Rebar Drawing (dwg)

Drawings – Avon RB1000CR Centurian Road Blocker CAD Foundation Drawing (dwg)
Format: dwg

Drawings – Avon RB1000CR Centurian Road Blocker CAD Foundation Drawing (dwg)
