Avon RB780CR Chieftain Road Blocker

RB780CR Chieftain Road Blocker Hostile Vehicle Mitigation (HVM) Solution PAS 68 impact tested

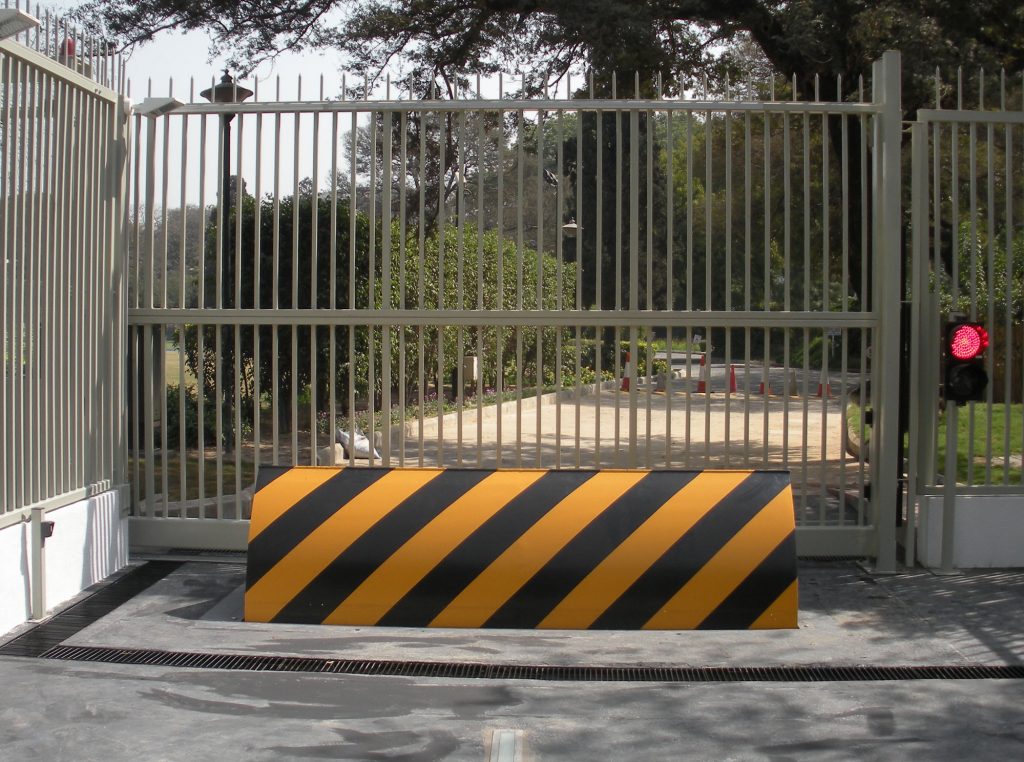

The Avon RB780CR Chieftain Road Blocker is designated as a Hostile Vehicle Mitigation (HVM) Solution having been PAS 68 impact tested.

Withstanding direct impact forces in excess of 1,852 KJ, the RB780CR road blocker provides protection to sites from extreme Vehicle Borne Improvised Explosive Device (VBIED) attack.

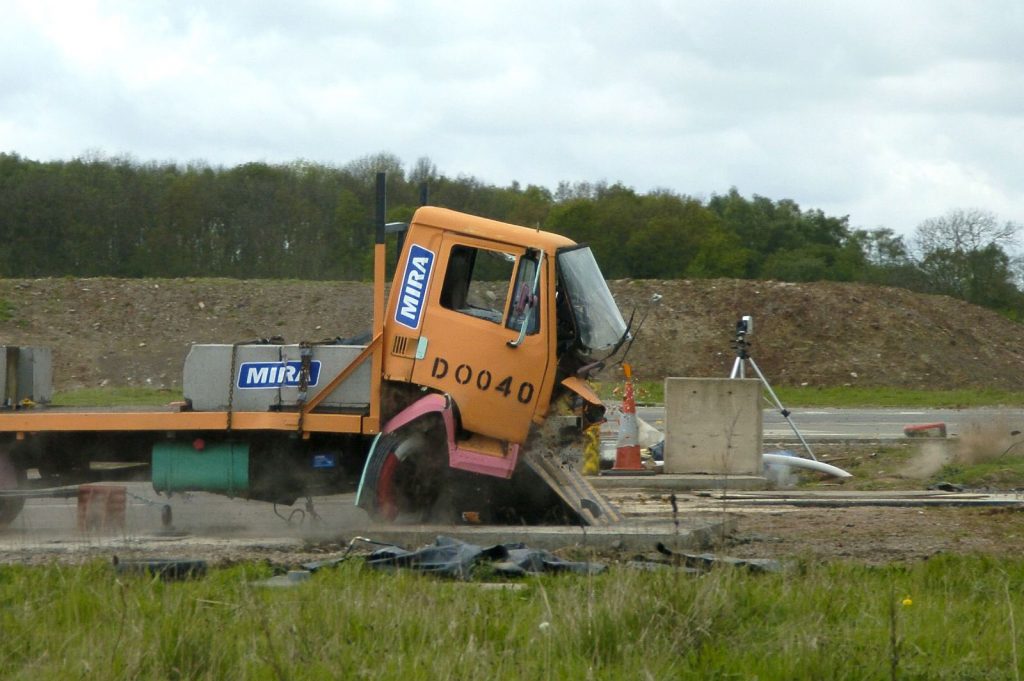

It has been independently, structurally evaluated by the Transport Research Laboratory (TRL) and has also been physically tested in a number of full scale impact tests conducted in accordance with PAS 68 by the Motor Industry Research Association (MIRA).

RB780CR Chieftain Road Blocker, PAS 68, HVM, road blocker
Avon RB780CR Chieftain Road Blocker PAS 68 HVM road blocker

Key features & benefits

Features

  • Multiple testing (5 different / independent physical tests)
  • Independently structurally evaluated
  • Physically impact tested to PAS 68 criteria
  • 100% duty cycling
  • Manual hand pump facility
  • Programmable logic control system



Benefits

  • Comprehensive understanding of attack resistance
  • Protection from multi- direction impact approach
  • A proven record of performance
  • Strength and durability
  • Operational under power failure conditions
  • Flexibility to interface with all forms of access control

Product overview

The RB780CR Chieftain Road Blocker achieved a PAS 68 classification of V/7500(N2)/80/90:0/17, which interprets as a 7500kg (N2) vehicle travelling at 80 kph (50mph) impacting the road blocker at a 90 degree angle and stopping the vehicle without penetrating past the blocking system.

The road blocker comes with a push-button hold to run control as standard.

The road blocker can be customised to interface with a wide range of access control equipment to suit specific customer requirements. Available configurations include (but are not limited to) inductive loop systems, card readers, communication equipment and manned guard emergency systems.

Developed and manufactured by engineers with significant experience in the fields of high security and access control.  The Chieftain Road Blocker is an ideal product to protect high security establishments, iconic buildings and critical infrastructure.

This is a specialist high security product and is designed for use with vehicles only and a full site risk assessment must be carried out at design stage to ensure that all relevant safety systems are included. Where the blockers control point is remote from the installation, we strongly recommend the fitting of a recordable CCTV system. For safety reasons pedestrians, cyclists and motorcycles should not to use a blocker controlled roadway.



Options available

  • Emergency fast raise system
  • Emergency buttons with lock down
  • UPS backup for the electrical system
  • LPS 1175 cabinets available for HPU
  • Accumulator systems for hydraulic
  • Operation in power failure conditions
  • Access and intercom systems

Technical Specification

Physical Dimensions:
2m Road Blocker:2m Road Blocker – 2510mm W x 1770mm D x 1000mm H
HPU Cabinet:640/940mm W x 670mm D x 1300mm H
Raised height of blocking segment :800mm
Blocker widths available:2-6 metres in 500mm increments
Basic Power requirements:3-Phase 415v AC, 50Hz, (other voltages are available)
Control Voltage:S.E.L.V 24V
Performance:Loading 30 Tonnes
Impact Absorption:1852KJ (fully operational immediately after impact)
PAS 68 Classification:V/7500(N2)/80/90:0/17
Tested Model:800mm H x 2.0m W
Speed of operation:6 Seconds to raise or lower (alternative speeds available)
Emergency Fast Operation (EFO) (option):<1 second to raise
Operating temperature range available (option):-25°C – +70°C
Construction:The supporting framework is constructed from fully welded, heavy gauge, high strength, structural steels completely encased with steel sheets to provide a self-shuttered module. Sub-surface fixing points ensure the blocker is completely secured to its foundation.



RB780CR Chieftain Road Blocker - Resources

Datasheet – Avon RB780CR Chieftain Road Blocker
Format: pdf

Datasheet for RB780CR Chieftain Road Blocker, a PAS 68 impact tested Hostile Vehicle Mitigation (HVM) Solution

Drawings – Avon RB780CR Chieftain Road Blocker
Format: pdf

General arrangement drawings for the RB780CR Chieftain Road Blocker, a PAS 68 impact tested Hostile Vehicle Mitigation (HVM) Solution

Specification – Avon RB780CR Chieftain Road Blocker
Format: pdf

Specification for an RB780CR Chieftain Road Blocker, a PAS 68 impact tested Hostile Vehicle Mitigation (HVM) Solution.

Drawings – Avon RB780CR Chieftain Road Blocker CAD foundation (dwg)
Format: dwg

Drawings – Avon RB780CR Chieftain Road Blocker CAD foundation (dwg)

Drawings – Avon RB780CR Chieftain Road Blocker CAD Rebar (dwg)
Format: dwg

Drawings – Avon RB780CR Chieftain Road Blocker CAD Rebar (dwg)

Drawings – Avon RB780CR Chieftain Road Blocker Step Installation CAD Drawing (dwg)
Format: dwg

Drawings – Avon RB780CR Chieftain Road Blocker Step Installation CAD Drawing (dwg)
