Avon Resilience SSF100 Bollard

SSF100 Resilience Bollard

The Avon Resilience SSF100 Bollard is an IWA14-1 impact tested super shallow foundation bollard, designed to provide stand-off hostile vehicle protection for infrastructure without the need for deep foundations.

With a structural foundation depth of just 100mm, the bollard offers the shallowest of foundations, whilst still providing a high level of protection against aggressive vehicle attack.

The bollard can be customised to blend into surrounding environments, with a variety of sleeve options, including stainless steel and ornate finishes. Ground finishes can include concrete, tarmac, block paving or crushed stone.

IWA14-1 impact tested super shallow foundation bollard
IWA14-1 impact tested bollards

Key benefits & features

Features

  • Physically impact tested to IWA 14-1:2013
  • Unobtrusive in appearance
  • Super shallow foundation
  • Alternative sleeve options
  • Modular design



Benefits

  • Confidence in proven performance
  • Adaptable to surrounding aesthetics
  • Minimal civil installation
  • Overcomes site depth restrictions
  • Full perimeter security

Product overview

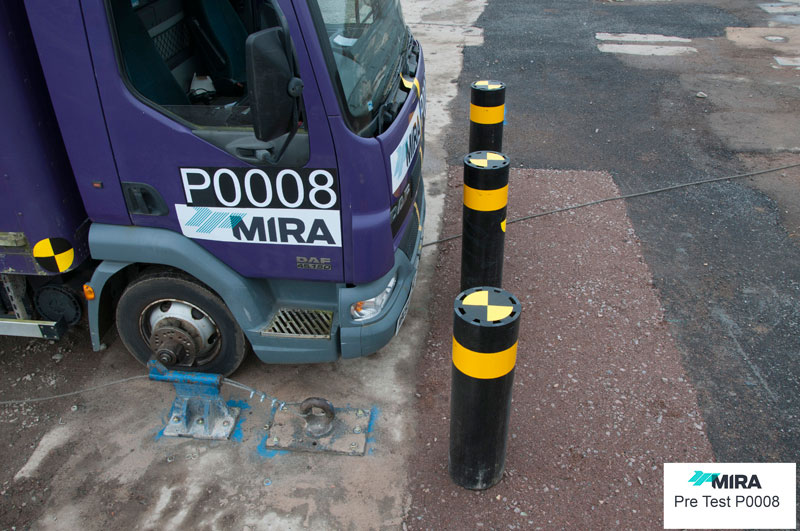

Physically tested in an array of 3 bollards to the IWA14-1:2013 impact testing standard using an N2A vehicle travelling at 64kph (40mph). it is designed & constructed to be installed with the minimum of civil excavation, it's unique arrangement option enable it to be a flexible and versatile security solution.

Designed & constructed to be installed with the minimum of civil excavation, its unique arrangement options enable it to be a flexible and versatile security solution.

The Resilience SSF100CR bollard can be integrated with our retractable PAS 68 bollards to create a cohesive protective perimeter around an area or building.

This is a specialist high security product and a full site risk assessment must be carried out at design stage to ensure that all relevant safety systems are included.

PAS 68 & IWA 14-1 tested bollards should be installed in accordance with the correct foundation drawings and should be installed with a clear distance of 1200mm (measured 600mm above ground level) between the facing edges of each bollard. Please refer to BSi PAS 69 or IWA 14-2 for guidance.

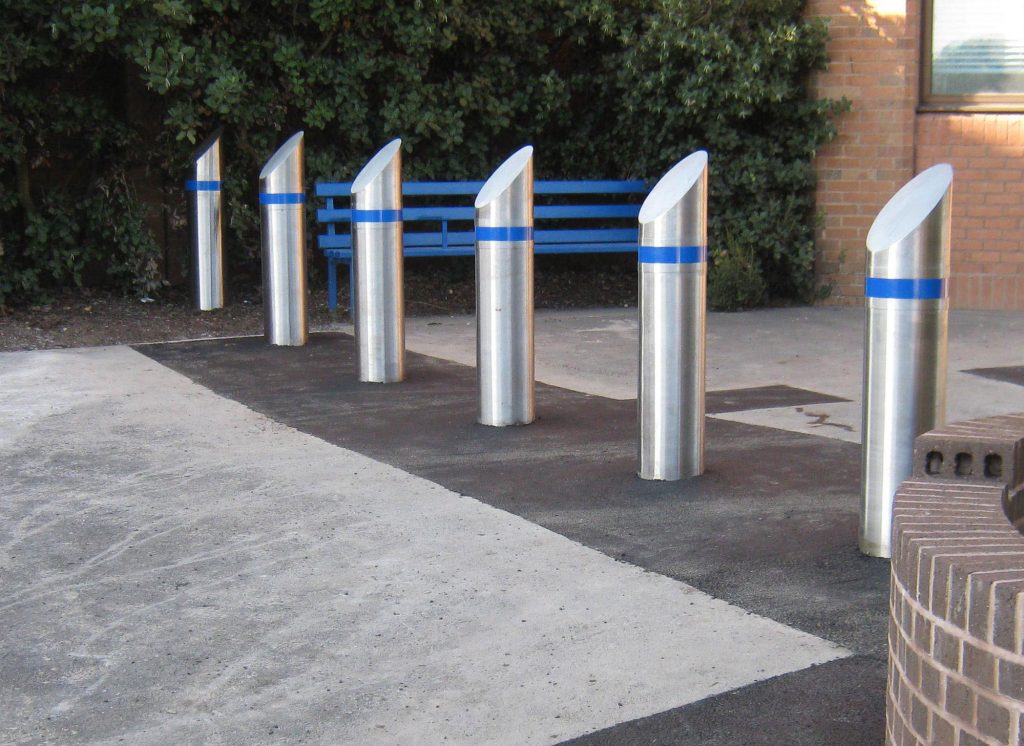

Stainless Steel Static Bollards

Options available

Bollards are supplied painted black with a reflective banding as standard, other sleeve finishes are available as options:

  • Stainless Steel Sleeves
  • Lights
  • Bespoke ornate sleeves
  • DDA Compliant Banding
  • Dome / Mitre / Flat tops

Resilience SSF100 Bollard - Resources

Datasheet – Avon SSF100 Bollard
Format: pdf

Datasheet for the Avon Resilence SSF100 super shallow bollard

Technical Specification

Physical Dimensions:
Single bollard:Tube diameter  273mm
Bollard Height:1 metre (above ground level)
IWA 14-1 Classification: IWA 14-1:2013  Bollard V/7200(N2A)/64/90:4.9
Model tested:1000mm above ground with a spacing of 1200mm between bollards.
Foundation Depth:100mm (Category B Depth <0.5m below
ground level)
Construction:The unit is comprised of a high strength steel tube 273mm diameter mounted on an integrated steel platform. (Appropriate manufacturing tolerances apply).
