Certification & Testing

Industry Driven Testing & Certification

IWA 14-1, PAS 68 & ASTM 2656F-07 are the industry testing standards that set out the criteria for physically impact testing our Vehicle Security Barriers and provide our clients with the assurance that they will provide the highest levels of physical protection against a potentially hostile vehicular attack.

IWA 14-1, PAS 68, ASTM 2656F-07,impact testing, vehicle security barriers

Crash Testing Programme

The key to critical infrastructure protection from a Vehicle Borne Improvised Explosive Device (VBIED) is a combination of access restriction and approach speed management. Whilst careful planning and layout design can assist with the restriction of approach speed. The final line of defence is the Blocking System.

The blocking systems are installed to protect both infrastructure and lives. It is essential that they are suitable to combat today’s ever increasing threat types.

The equipment we develop and manufactured has been rigorously crash tested to PAS 68 and ASTM F 2656-07 to ensure that it performs when you need it.



We also undertake extensive further testing for:

  • Dynamic impacts
  • Penetration
  • Explosive shrapnel dispersal
  • Duty cycling
  • Variable ambient temperature performance

In today’s environment higher levels of perimeter protection are increasingly necessary. Design consultants are tasked with ensuring that installations are not only safe and secure in the current climate but are also future proofed against the escalating threat levels.

Our commitment to protection extends to the provision of a frontline service to design consultants to assist in the correct specification and design of security control points.

Determined Solutions to Determined Threats

First road blocker tested in 2005 ~ Impact Testing Pioneers

What is PAS 68 & IWA 14-1?

PAS 68 & IWA 14-1 have been prepared to address the needs of organisations who wish to have assurance that vehicle security barriers (VSBs) will provide the level of impact resistance that they seek.

In the UK, the CPNI (Centre for Protection of National Infrastructure) in conjunction with other stakeholders developed the PAS 68 classification. This has now been replaced with the International Works Agreement (IWA) 14-1, combining elements of both PAS68 and the US classification ASTM 2656-07.

PAS 68 & IWA 14-1 specifies the essential impact performance requirement for a VSB and a test method for rating its performance when subjected to a single impact by a test vehicle not driven by a human being.

A PAS 68 & IWA14-1 performance rating is designated to each product that has been impact tested; this classification code should be available to confirm the test results.

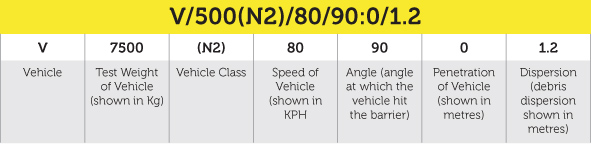

Interpreting the PAS 68 Classification Code

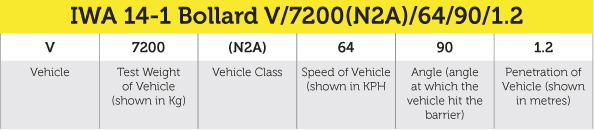

Interpreting the IWA 14-1 Classification Code

Other International Testing Standards:

  • A European CEN workshop agreement CWA 16221:2010 combined detail from BSI PAS 68 & PAS 69
  • International Workshop Agreements IWA 14-1 & IWA 14-2, combines elements of EU and the US testing criteria.

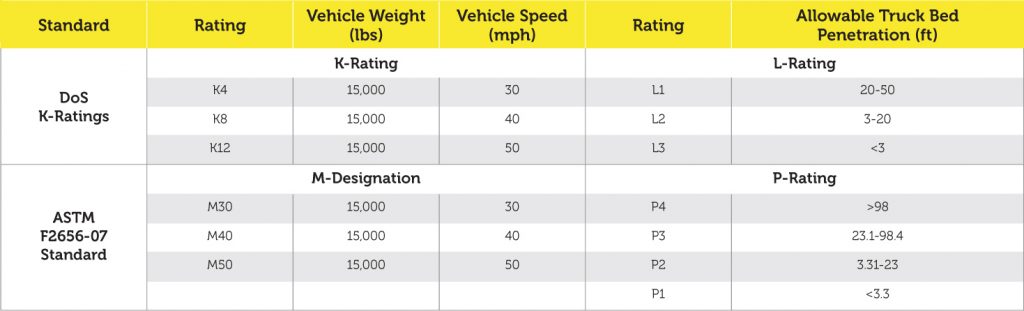

  • Department of State (DOS) Crash Test Certification SD-STD-02.01, Revision A, March 2003 – Test Method for Vehicle Crash Testing Of Perimeter Barriers and Gates.
  • The DOS SD-STD-02.01 has been superceded by ASTM F2656-07 Standard Test Method for Vehicle Crash Testing of Perimeter Barriers.

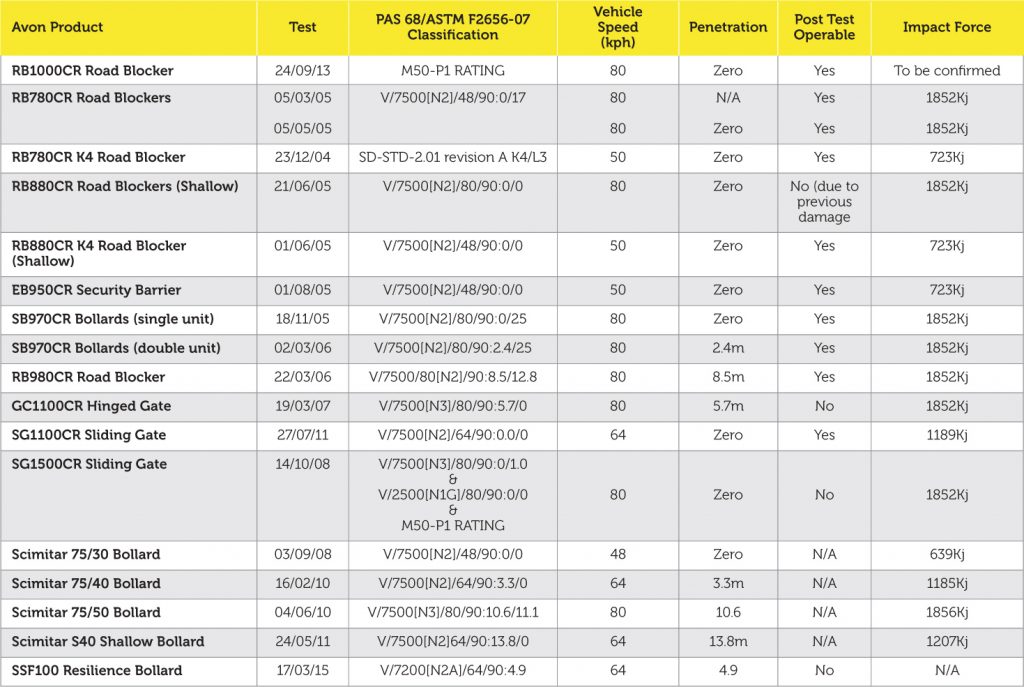

Our PAS 68 Crash Tested Security Products

All tests carried out by independent test agencies – TRL or MIRA in accordance with the PAS 68 requirements using a 7500kg vehicle

High Security Crash Test Videos

Avon SB970CR Scimitar Bollards | PAS 68 Crash Tested Bollards

Avon RB1000CR Centurion Road Blocker | ASTM F2656-07 (K12)

Avon SG1100CR Armoured Vehicle Gate | PAS 68 Sliding Gate

Avon EB950CR Armstrong Barrier | PAS 68 Rising Arm Barrier

Avon RB880CR Defender Road Blocker | PAS68 Shallow Blocker

Avon Scimitar Bollards | PAS 68 & IWA 14-1 Bollards
