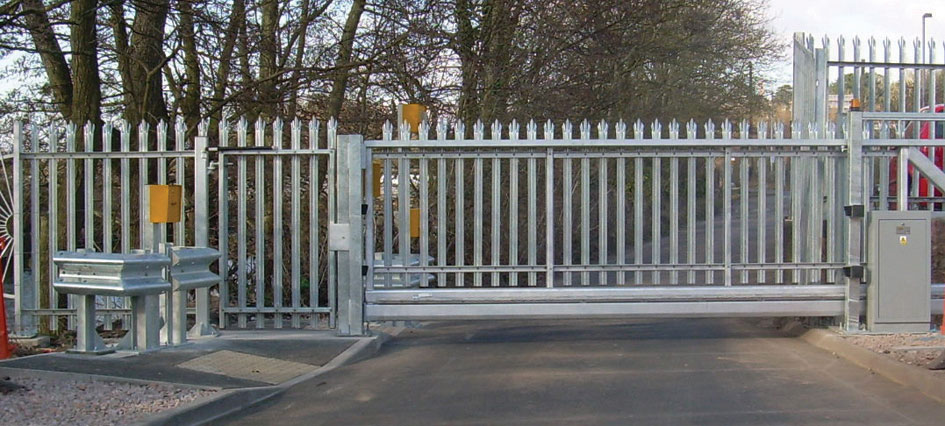

Avon CG1000 Cantilever Sliding Gate

Avon CG1000 Cantilever Sliding Gate

The Avon CG1000 Cantilever Sliding Gate is an automatic sliding gate that come in variety of widths and heights to suit site requirements.

The cantilever sliding gates are manufactured from RHS sections of sufficient strength to suit operating requirements which are dependent upon the gates opening width, height, type of infill (windloading/weight) and the level of security required.

Sliding gates, automatic, manual gates,vehicle & pedestrian access control

Key features & benefits

Features

  • High quality coating system
  • Galvanised/Zinc sprayed or powder/plastic coated
  • Bespoke built units
  • Manual Override facility



Benefits

  • Environmentally durable
  • Custom build to client specification
  • Operational under power failure conditions
  • Ease of installation

Product overview

Single gates can span openings of ten metres (single leaf) or up to 20 metres (double leaf), subject to gate height and infill.

They are a durable and robust way of controlling and securing larger road widths and vehicle access.

The design of a cantilever gate means that a ground track is not required in the roadway, thus the gate is not affected by cambers, kerbs, debris or adverse weather conditions like snow or ice.

The gates are finished to a high standard and comply with current EU safety requirements.

NB Sliding gates are designed to be used with vehicles only and pedestrians should be provided with an alternative entrance or exit.

The gate comes with a push-button hold to run control as standard.

The gate can be customised to interface with a wide range of access control equipment to suit specific customer requirements. Available configurations include (but are not limited to) inductive loop systems, card readers, communication equipment and manned guard emergency systems.

When deciding to install a sliding gate a full site risk assessment should be undertaken prior to the design and installation of the gate, to ensure that all the appropriate safety measures have been addressed.

DHF Raising Standards Safety Assured

Options available

  • Access control and intercom systems
  • Audible alarm / Flashing beacon
  • Safety edge / Safety photocells / Laser scanners
  • Serrated / barbed wire / wire toppings
  • High speed gate drive
  • Pedestrian guard rail
  • Inductive loop systems
  • Traffic lights & back indications systems
  • Matching infills and cladding

CG1000 Cantilever Sliding Gate - Resources

Datasheet – Avon CG1000 Cantilever Sliding Gate
Format: pdf

Datasheet – Avon CG1000 Cantilever Sliding Gate

Drawings – Avon CG1000 Cantilever Sliding Gate
Format: pdf

Drawings – Avon CG1000 Cantilever Sliding Gate

Technical Specification

Basic Power Requirements: Cantilever – 230v Single phase 50Hz supply 230v/400v 3 phase (option) 110v (option)

The incoming mains supply to the control panel is normally single phase 220/250v, but three phase 400v may be required depending on the design length and weight of the gate.

Control: Basic gate is a push button – hold to run, alternative access control systems can be accommodated.
Dimensions: From 3m to 10m clear width openings and heights are normally 2.1m or 2.4m, infills and panels available are dependent on height and weight of gate.
Safety:   Safety Options – In accordance with the workplace (Health, Safety and Welfare) regulations 1992, BS EN 12453:2001 and BS EN 12445:2001 it is highly recommended that the following items are fitted to your automatic sliding gate.

Safety edge to leading edge of gate leaf – to prevent gates closing on a person or vehicle when the gate is activated.

Additional safety edges to internal and external motor posts

Weldmesh infill

Post mounted audible alarm or flashing beacon, alerting people when the gate is in operation

Gate runback protection. This is to prevent a person, entering that area whilst the sliding gates are operating.

Safety induction loops cut into the road surface. This will inhibit automatic sliding gates closing on to a vehicle within the aperture, if detected.

Safety photocells and laser scanners act as additional safety for pedestrians and high lorries.

Forces: A maximum of 400N of crushing force is permitted before the gate leaf should start to reverse, for gaps greater than 500mm a maximum crushing force of 1400N is permitted. Regular maintenance and force testing is recommended by a trained technician.
