RB880CR Defender Road Blocker

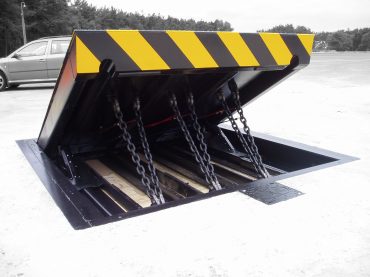

The Avon RB880CR Defender Road Blocker is a shallow foundation road blocker and is ideal where deeper foundations are not possible / practical.

With a foundation depth of less than 300mm, the RB880CR is designed to complement the Avon Barrier range of Hostile Vehicle Mitigation (HVM) solutions. The road blocker has a blocking segment with a raised height of 1000mm and can withstand direct impact forces of 1,852 KJ.

The road blocker was developed by our in-house engineering team to overcome specific site limitations and is available with segment widths of 2m and 3m.

Key features & benefits

Features

Multiple testing (4 different independent tests)
Road blockers shallow foundation /mounting from 300mm overall depth
100% duty cycling
Programmable logic control system
Manual hand pump facility
Manufactured from heavy gauge materials
Physically impact tested to PAS 68 criteria

Benefits

Comprehensive understanding of attack resistance
Overcomes site depth restrictions
Reliable and dependable
Flexibility to interface with all forms of access control
Operational under power failure conditions
Strength and durability

Product overview

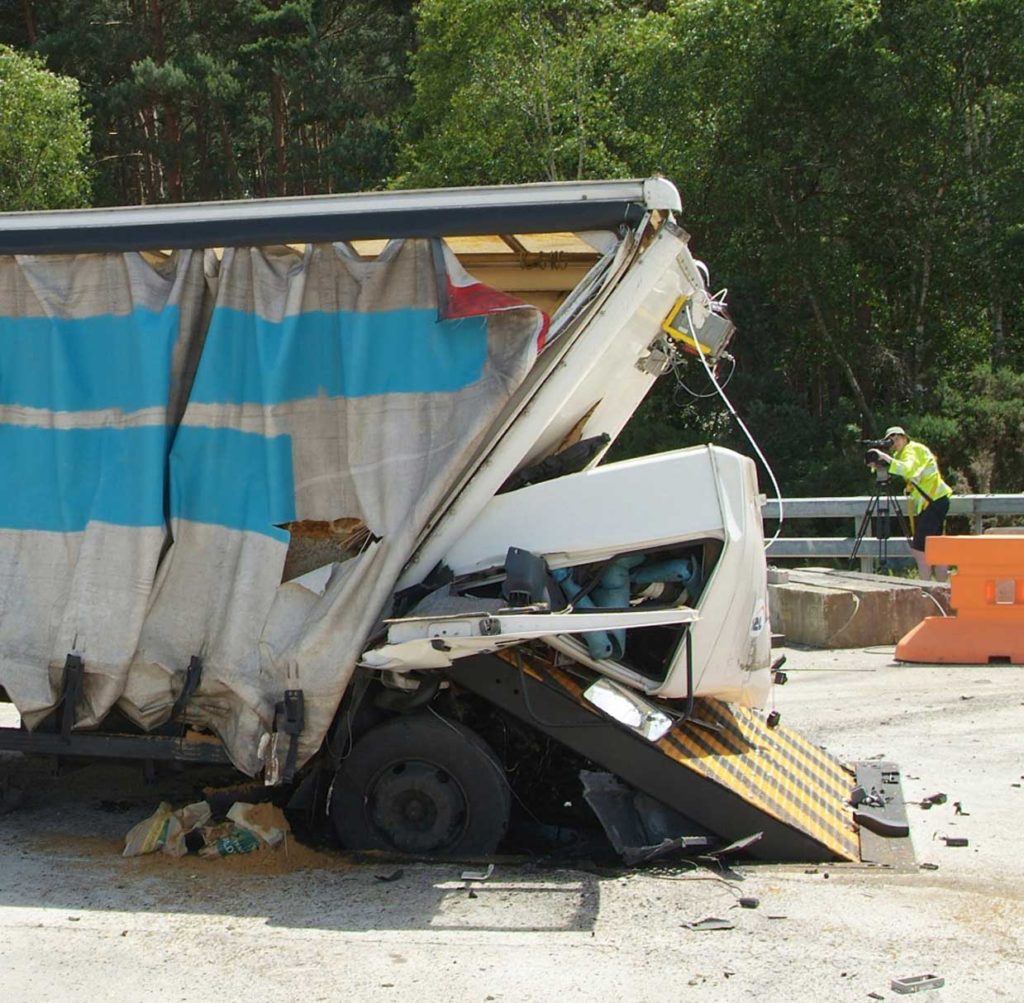

The RB880CR has been independently physically tested in a number of full scale crash tests conducted in accordance with PAS68 by the Transport Research Laboratory (TRL). The road blocker arrested a 7500kg vehicle travelling at 80kph (50mph) with zero penetration of the vehicle.

The road blocker comes with a push-button hold to run control as standard.

The road blocker can be customised to interface with a wide range of access control equipment to suit specific customer requirements. Available configurations include (but are not limited to) inductive loop systems, card readers, communication equipment and manned guard emergency systems.

This is a specialist high security product and is designed for use with vehicles only and a full site risk assessment must be carried out at design stage to ensure that all relevant safety systems are included. Where the blockers control point is remote from the installation, we strongly recommend the fitting of a recordable CCTV system.

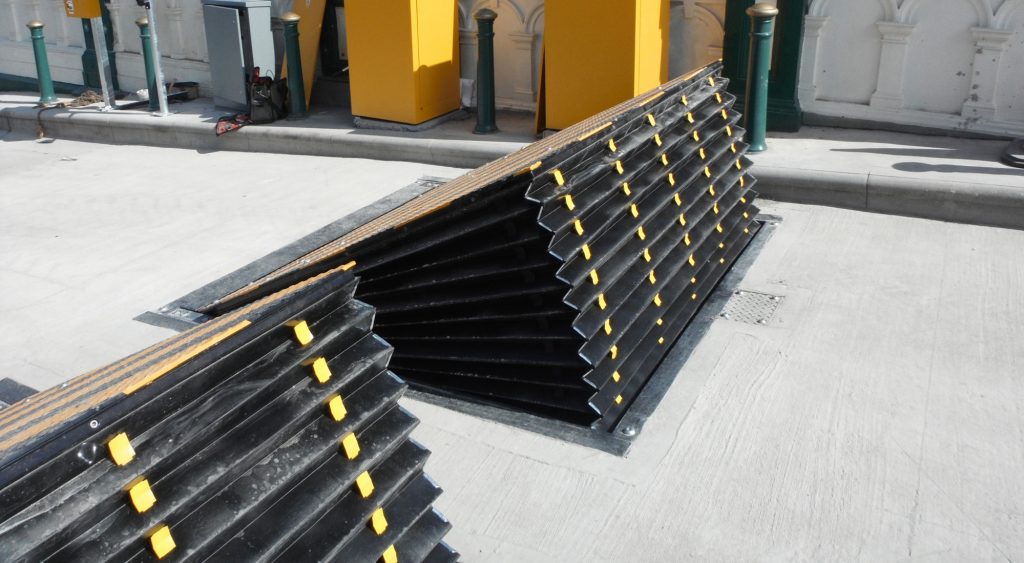

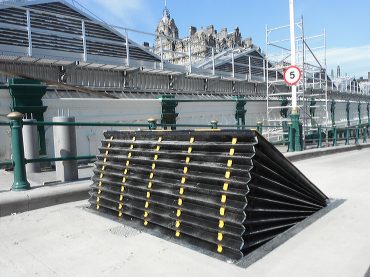

It is also strongly recommended that a debris protection skirt is fitted.

For safety reasons pedestrians, cyclists and motorcycles should not to use a blocker controlled roadway.

Shallow foundation road blocker - Hostile Vehicle Mitigation (HVM)

Options available

Debris protection skirt
Emergency fast raise system
Emergency buttons with lock down UPS backup for the electrical system
Accumulator systems for hydraulic operation in power failure conditions
Access and intercom systems
Inductive loop systems
Traffic lights and back-indications systems
Interlocking systems to give air-lock type protection on sites with higher threat levels
Integral inset warning lights in blocking segment

Technical Specification

Physical Dimensions:
3m Road Blocker: 2m Road Blocker:	2520mm W x 3210mm D x 320mm H 2520mm W x 2210mm D x 320mm H
HPU Cabinet:	640/940mm W x 670mm D x 1300mm H
Raised height of blocking segment:	1000mm
Blocker widths available:	2 & 3 metres widths
Basic Power requirements:	3-Phase 415v AC, 50Hz, (other voltages are available)
Control Voltage:	S.E.L.V 24V
Performance:	Loading 20 Tonnes
Impact absorption:	1852Kj
PAS 68 Classification:	V/7500(N2)/80/90:0/0
Tested Model:	2m blocking segment 1000 mm high blocking segment (raised)
Speed of operation:	6 Seconds to raise or lower (alternative speeds available)
Emergency Fast Operation (EFO) (option):	<1 seconds to raise
Operating temperature range available (option):	-25°C – +70°C
Construction:	The supporting framework is constructed from fully welded, heavy gauge, high strength structural steels. Foundation support legs are provided to create a linked foundation enabling the impact forces to be distributed over a larger shallow area.

RB880CR Defender Road Blocker - Resources

Datasheet – Avon RB880CR Defender Road Blocker
Format: pdf

Datasheet for RB880CR Defender Road Blocker – a shallow foundation PAS68 impact tested road blocker

Download file

pdf

Drawings – Avon RB880CR Defender Road Blocker
Format: pdf

General arrangement drawings for RB880CR Defender Road Blocker, a shallow foundation road blocker ideal where deeper foundations are not possible / practical.

Download file

pdf

Drawings – Avon RB880CR Defender Road Blocker (3m)
Format: pdf

General arrangement drawings for 3m RB880CR Defender Road Blocker with shallow foundations.

Download file

pdf

Specification – Avon RB880CR Defender Road Blocker
Format: pdf

Specification for RB880CR Defender – Shallow foundation PAS 68 road blocker

Download file

pdf

Drawings – Avon RB880CR Defender Road Blocker CAD Foundation Drawing 1 of 4 (dwg)
Format: dwg

Drawings – Avon RB880CR Defender Road Blocker CAD foundation sheet 1 of 4 (dwg)

Download file

dwg

Drawings – Avon RB880CR Defender Road Blocker CAD Foundation Drawing 2 of 4 (dwg)
Format: dwg

Drawings – Avon RB880CR Defender Road Blocker CAD foundation 2 of 4 (dwg)

Download file

dwg

Drawings – Avon RB880CR Defender Road Blocker CAD Foundation Drawing 3 of 4 (dwg)
Format: dwg

Drawings – Avon RB880CR Defender Road Blocker CAD foundation 3 of 4 (dwg)

Download file

dwg

Drawings – Avon RB880CR Defender Road Blocker CAD Foundation Drawing 4 of 4 (dwg)
Format: dwg

Drawings – Avon RB880CR Defender Road Blocker CAD foundation 4 of 4 (dwg)

Download file

dwg
