EB950CR - Armstrong Barrier

The Avon EB950CR Armstrong Barrier is a high security rising arm barrier that has been PAS 68 impact tested and offers a high level of protection where central roadway foundations are not possible / practical.

The barrier can withstand direct impact forces in excess of 720 KJ, and provides shallow mounted protection to sites from extreme Vehicle Borne Improvised Explosive Device (VBIED) attack.

The EB950CR is a highly dependable security product that will easily interface with a wide range of control equipment. Assembled in our fabrication facilities using heavy gauge materials to give maximum strength and durability. The EB950CR is a traditional rising arm barrier security barrier with the benefits of high level physical protection.

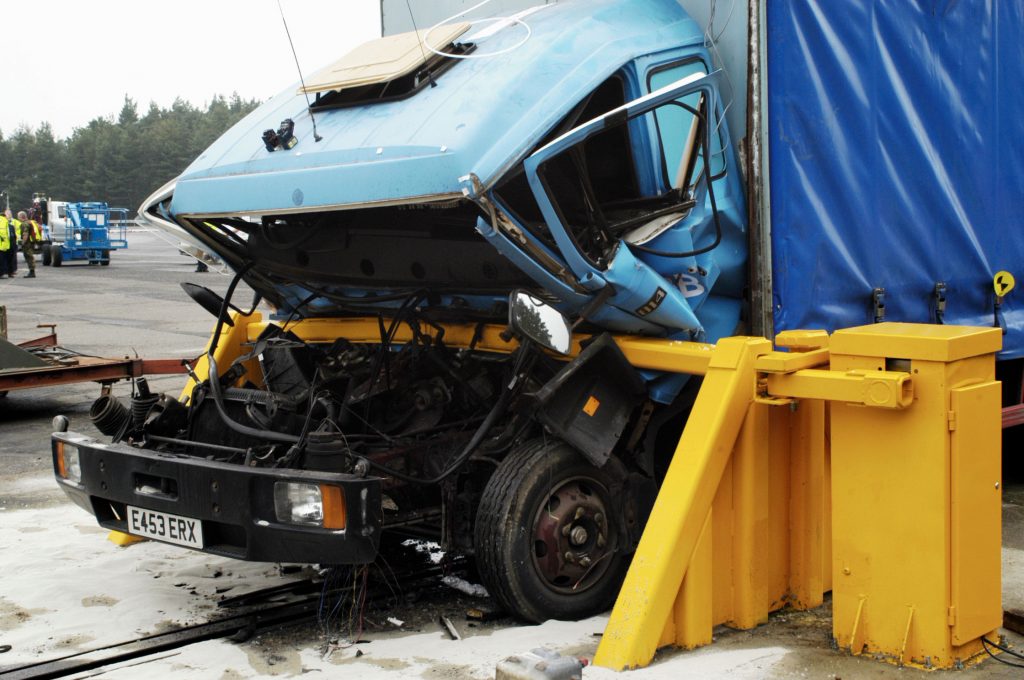

The EB950CR has been independently physically tested in a number of full scale crash tests conducted in accordance with PAS 68 by the Transport Research Laboratory (TRL).

Avon EB950CR Armstrong Barrier high security PAS68 rising arm barrier

PAS 68, IWA 14-1, ASTM F2656,Vehicle Security Barriers (VSBs)

Key features & benefits

Features

Physically impact tested to PAS 68 criteria
Shallow mounting from 470mm overall depth
Manufactured from heavy gauge materials
Manual hand pump facility
Programmable controller
100% duty cycling

Benefits

Confidence in proven performance
Overcomes site depth restrictions
Strength and durability
Operational under power failure conditions
Flexibility to interface with all forms of access control
Reliable and dependable

Product overview

Independently physically impact tested in accordance with the BSi PAS 68 by the Transport Research Laboratory (TRL) it achieved a PAS 68 classification V/7500(N2)/48/90:0/0 and remained operational after the impact.

The high security barrier comes with a hold to run control as standard, the hydraulic power pack is controlled by a programmable controller and can be customised to interface with a wide range of access control equipment to suit specific customer requirements. Available configurations include (but are not limited to) inductive loop systems, card readers, communication equipment and manned guard emergency systems.

In the event of power failure a manual pump is provided to ensure operator control is maintained.

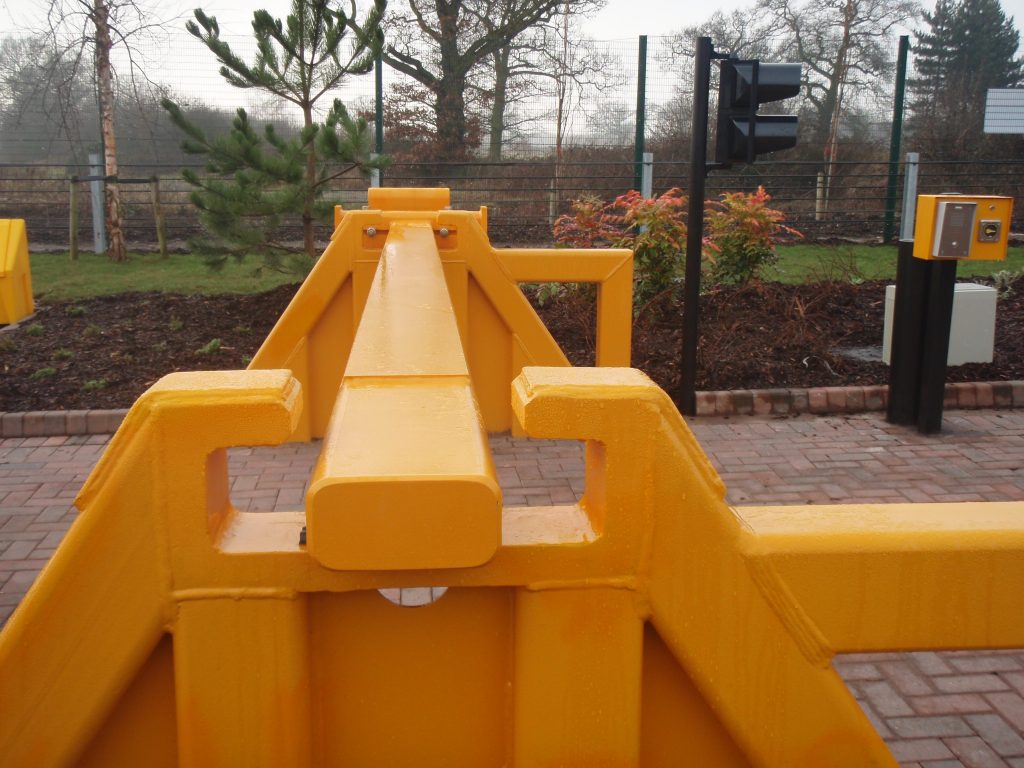

The EB950CR PAS 68 security barrier is an Electro-Hydraulically operated rising arm barrier with arm widths of up to 4.5m span. The barriers arm sits 1 m above the roadway and is supported by 2 side support frames. During impact the arm slides into a locked position protecting the main drive mechanism from damage.

Independently physically impact tested

Options available

Access and intercom systems
Emergency buttons with lock down
Accumulator systems for hydraulic operation
Integral inset warning lights
UPS backup for the electrical system
Interlocking systems to give air-lock type protection on sites with higher threat levels
Inductive loop systems
Traffic lights and back-indications systems

Technical Specification

Physical Dimensions:	600mm W x 890mm D x 1230mm H
Barrier catcher foundations:	1500mm W x 3600mm D x 470mm H
Barrier Arm:	5m max
Basic Power requirements (dependent on config):	Single phase 220V AC, 50Hz, Min 16 Amps
Control Voltage:	S.E.L.V 24V
Impact Absorption:	723KJ (fully operational immediately after impact)
Full PAS68 Classification:	V/7500(N2)/48/90:0/0
Tested Model:	1m H x 3m W
Speed of operation:	6-10 seconds to raise or lower
Operating temperature range available (option):	-25°C – +70°C
Construction:	The boom catcher frames are fabricated from heavy steel sections, which are anchored into the foundations: they are designed to support the boom in the lowered position and to take a full impact load. The recess in the catchers prevents the boom from lifting when impacted. Outboard extensions inhibit the vehicle running up the catcher frame. The boom is fabricated from heavy steel section clamped to a lift yoke which is designed to slip through its clamp in the event of a collision, to engage under the catcher frame recesses. The lift assembly comprises twin cranks welded to a solid shaft, which rotates in non-metallic bearings. A heavy-duty steel yoke is welded to the outer ends of the shaft. The crank is rotated through 90 degrees by the action of a hydraulic cylinder. Main barrier cabinet is constructed from steel plate; it houses the hydraulic equipment/reservoir, drive mechanism and electrical enclosure.

Armstrong Security Barrier - Resources

Datasheet – Avon EB950CR Armstrong Barrier
Format: pdf

Datasheet – Avon EB950CR Armstrong Barrier is a high security rising arm barrier that has been PAS 68 impact tested.

Download file

pdf

Drawings – Avon EB950CR Armstrong Barrier
Format: pdf

Foundation drawings and layouts for EB950CR Armstrong barrier.

Download file

pdf

Specification – Avon EB950CR Armstrong Barrier
Format: pdf

Procurement Specification for a PAS 68 High Security Lift Arm Barrier (HSLAB)

Download file

pdf

Find out more about our other PAS 68 & IWA 14-1 products

Certification

Learn about our crash testing program including the globally recognised impact testing standards PAS 68, IWA14-1 and ASTM certification

Speak to an expert

If you would like to discuss a specific project or would simply like some further advice about our high security solutions from one of our experts...

Projects

With tens of thousands of security projects delivered and installed globally, we strive to work closely with our customers from initial concept and specification, through to delivery and life support of our systems.

Related PAS 68 Products

Avon Cedar Gate

Avon SG1100CR Armoured Vehicle Gate

Avon RB780CR Chieftain Road Blocker
