The Avon SB970CR Scimitar Static Bollard is a PAS 68 impact design rated fixed bollard, a high level of physical perimeter protection.
The bollard stands at 1m above finished foundation and can incorporate an optional dressing including block paving, tarmac or shingle, enabling the bollard to seamlessly integrate with surrounding environments.
The bollard’s foundation has been designed by experts in the field of PAS 68 & hostile vehicle mitigation.

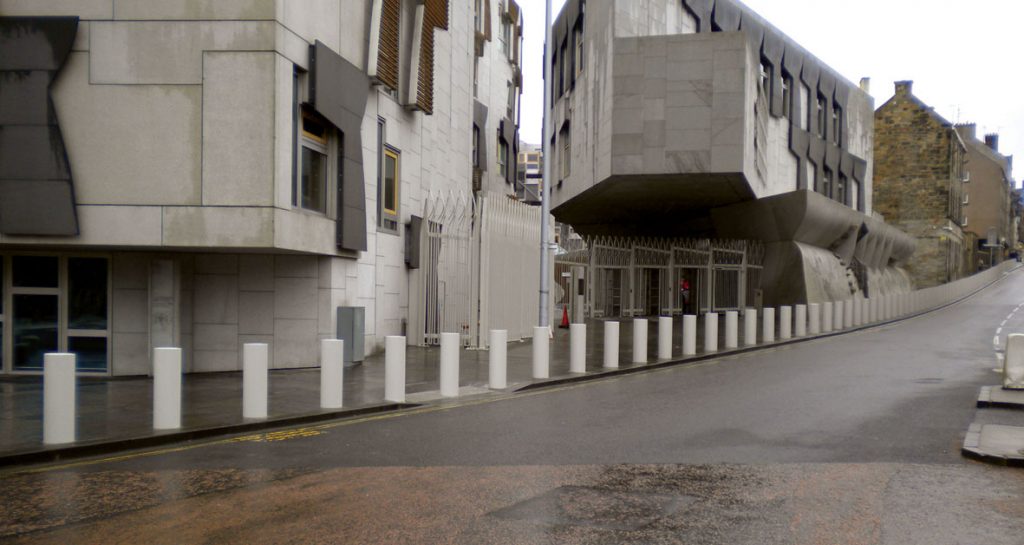

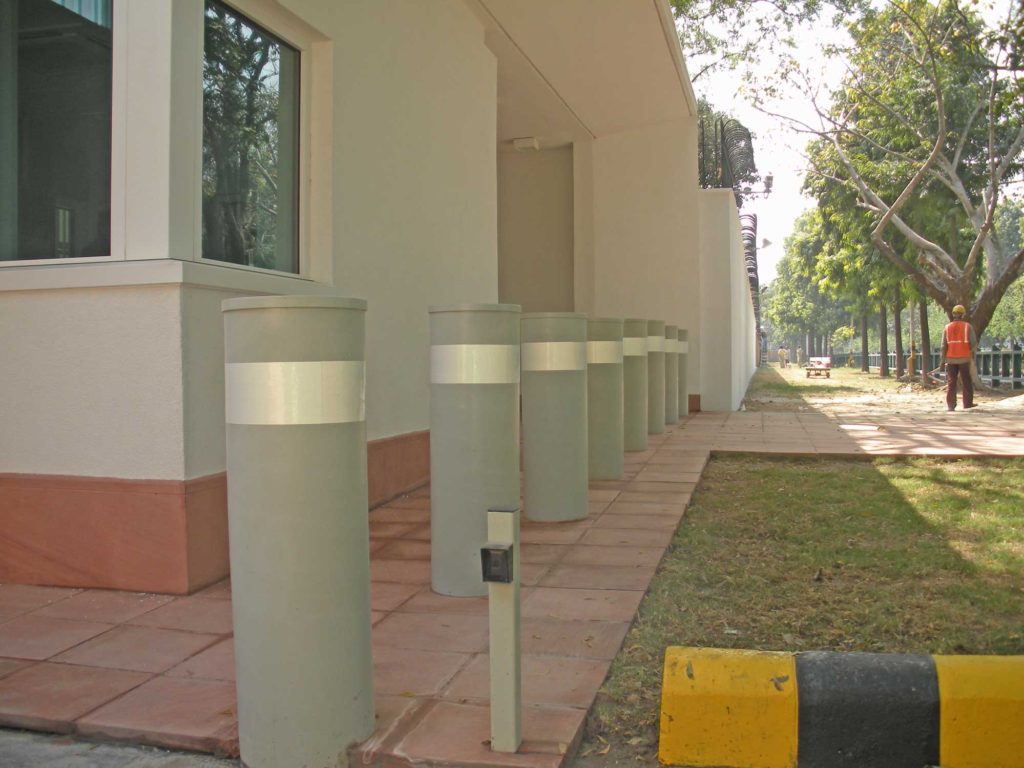

The bollards can be installed on the perimeter line of buildings to create a stand off distance, and are ideal to restrict vehicle access to public areas, whilst allowing members of the public to move freely. A line of fixed bollards will prevent a vehicle from driving at force into an unauthorised area, such as the front of an airport terminal, sports stadium or a pedestrian retail area.
Key features & benefits
The static bollard range provides protection from a range of determined threats from vandalism to the extreme of a Vehicle Borne Improvised Explosive Device (VBIED), Scimitar bollards are ideal to discreetly protect sites where aesthetics and public perception are a consideration.
They can be utilised for on-street or perimeter stand-off protection, an unobtrusive hostile vehicle mitigation product that can be finished to complement surrounding architecture as well as interfacing with a wider range of high security vehicle control equipment.
This is a specialist high security product and a full site risk assessment must be carried out at design stage to ensure that all relevant safety systems are included. Scimitar Bollards should be installed in accordance with the correct foundation drawings and should be installed with a clear distance of 1200mm (measured 600mm above ground level) between the facing edges of each bollard. Please refer to BSi PAS 69 or IWA 14-2 for guidance.
Impact testing of SB970CR Scimitar Bollard Auto Bollard, data from testing was used by independent CPNI approved RSES Engineers to provide design rating of SB970CR Scimitar Static Bollard.
Bollards are supplied painted black with a reflective banding as standard, other sleeve finishes are available as options
Datasheet – Avon SB970CR Scimitar Static Bollard
Datasheet for the SB970CR Scimitar Static Bollard Datasheet PAS 68 Static bollard
|Bollard Diameter:||323mm (+/- 1%)|
|Bollard Height||1 metre (above ground level)|
|Impact Design Rating:||D/7500[N2]/80/90/1852 (Ref independent CPNI approved RSES Engineering report) based on SB970CR automatic bollard impact test PAS 68:2005 V/7500/(N2)/80/90:0/25|
|Foundation Depth:||650mm (Category C Depth >0.5m below ground level)|
|Construction:||The unit is comprised of a high strength steel tube. Painted black with reflective yellow fascal band|
