Avon CityProtector Bollard

Avon CityProtector Bollard

The Avon CityProtector Bollard is an IWA 14-1 crash rated fixed bollard but not in the conventional shape of a traditional street bollard.  Our innovative R&D team challenged this traditional shape and took a new direction with the design of the CityProtector. Inspired by the biomechanics of nature, the shark’s tooth became the inspiration for the new bollard design.

The crash rated static bollard has undergone a number of independent impact tests, carried out at the UK’s accredited testing facilities Horiba Mira and has successfully achieved both PAS 68 and IWA 14-1 ratings for the CityProtector M40 and an IWA 14-1 rating for the CityProtector M50.

Avon CityProtector Fixed Bollard
Avon CityProtector IWA-1 Bollard

Key benefits & features

Features

  • Physically impact tested to IWA 14-1:2013
  • Physically impact tested to PAS 68
  • Unique modern appearance
  • Shallow foundation
  • Modular design



Benefits

  • Confidence in proven performance
  • Adaptable to urban landscape
  • Overcomes site depth restrictions
  • Easily Installed
  • Full perimeter security

Product Overview

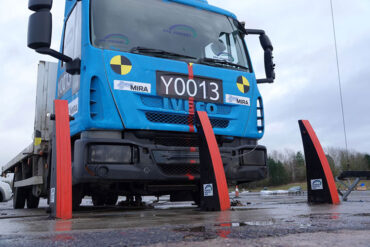

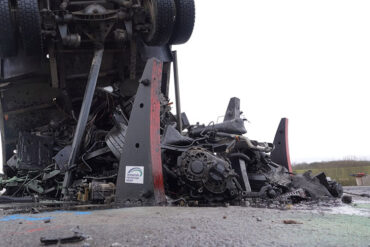

Physically tested in an array of 3 bollards, the CityProtector was initially successfully tested to both IWA14-1 (N2A 7200kg vehicle) and PAS 68 (N2 7500kg vehicle) ratings at a speed of 40 mph (64kph). The result led to further IWA 14-1 testing at a higher speed of 50mph (80 kph), passing the impact almost unscathed and disabling the vehicle completely.

Avon CityProtector M40

CityProtector-M50 Bollard IWA 14-1

The Avon CityProtector M40 achieved the following certifications:

IWA 14-1:2013 V/7200[N2A]/64/90:0.7

PAS 68:2013 V/7500[N2]/64/90:0.3/15.7

Avon CityProtector M50

The CityProtector M50 achieved the following certification:

IWA 14-1:2013 V/7200[N2A]/80/90:4.3

City Centre Security

Adding or retrofitting physical security in the built urban environment is a challenge for architects and security consultants. The CityProtector has all the attributes to help with this problem.

Shallow Foundations

With just a 220mm foundation depth, the CityProtector bollard is ideal for city centres protection or where deep foundations are not possible due to services or infrastructure laying just beneath the street level. The smaller foundation footprint, also reduces the time and cost of the installation.

Easy To Install

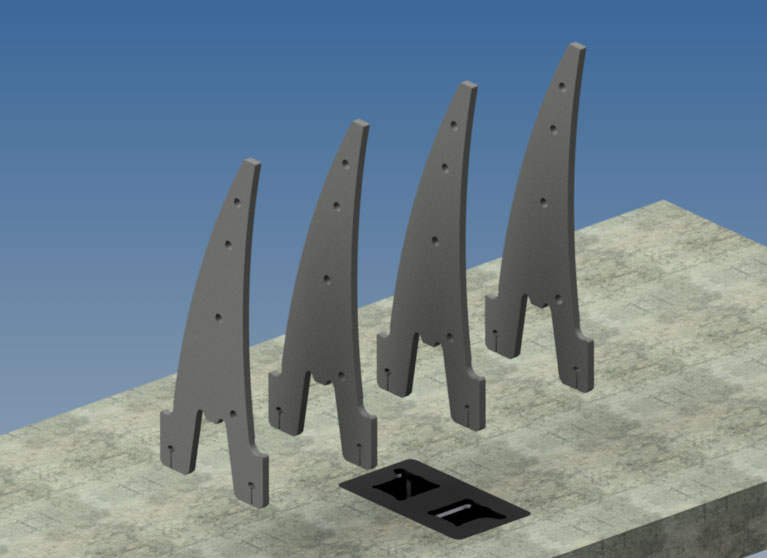

The unique modular design can easily be assembled and disassembled manually by one person. This means that heavy lifting equipment such as cranes or forklifts are not required, reducing the cost of installation.

Sleeves or No Sleeves

The CityProtector doesn’t require a sleeve and can be finished in your choice of colours.  If a stainless steel finish is preferred then a selection of shapes are available the CityProtector original design, as well as in round, oval and rectangular shapes.

Discuss your Bollard project with us

CityProtector Fixed Bollard

Contact us

Avon CityProtector Bollards

To find out more about our CityProtector Bollards

  • This field is for validation purposes and should be left unchanged.

Individual Design or Street Furniture

A unique feature is the individual design, which can be adapted into the cityscape. Our CityProtector has a multi-layered structure and can be customised in colour and shape. The integration as street furniture invites the general public to interact, blending into the surrounding urban environment whilst still ensuring physical protection.

Seating

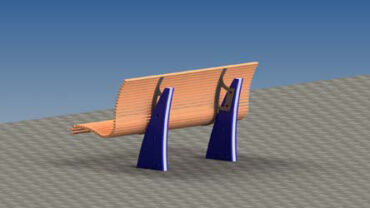

IWA14-1 Street Furniture bench

Bicycle Racks

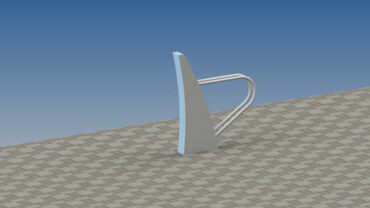

IWA14-1 Street Furniture Bike Rack

Planters

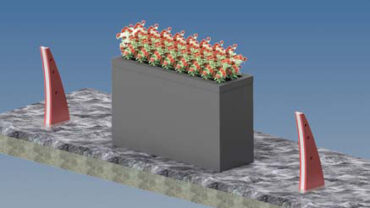

IWA14-1 Street Furniture planter

Technical Specification

Avon CityProtector

M40

M50

Design

Removable blocking bollard(s) with blocking elements in layered construction, mounted in an underground housing for installation with shallow foundation

Kinetic Impact Energy

1185 kJ (7.5 t @ 64 km/h)

1778 kJ (7.2 t @ 80 km/h)

Certification

PAS 68:2013 V/7500[N2}/64/90:0.3/15.7

IWA 14-1:2013 V/7200[N2A]/64/90:0.7 (triple unit)
ZERO (static) penetration according to PAS 68:2013

IWA 14-1 V/7200[N2A]/80/90:4.3 (triple unit)

Foundation

220 mm (shallow foundation)

Blocking

Width / Height

100mm / 900mm

Foundation Size

3900 x 1750 mm (triple unit)

Weight

approx. 45 kg per blocking element

approx. 325 kg per bollard

Options

100 mm lowered foundation, warning strip red/white – VZ 600 – RA 2B, project-specific adaptation of blocking element, stainless steel shroud, complementation with accessory components for street furniture solutions

Colour Blocking Element

Standard: RAL 7016 anthracite grey or RAL 7035 light grey other RAL colours or DB colours as well as colour combinations on request

Avon CityProtector Resources

Technical Datasheet – Avon CityProtector M50 Bollard
Format: pdf

Technical Datasheet – Avon CityProtector M50 Bollard

Technical Datasheet – Avon CityProtector M40 Bollard
Format: pdf

Technical Datasheet – Avon CityProtector M40 Bollard

Tender Description CityProtector M50 Bollard
Format: pdf

Tender Description CityProtector M50 Bollard for IWA14-1 Crash Rated Bollard

Tender Description CityProtector M40 Bollard
Format: pdf

Tender Description CityProtector M40 Bollard PAS 68 & IWA 14-1 rated bollard
