SG1100CR Armoured Vehicle Gate

The SG1100CR Armoured Vehicle Gate is an independently PAS 68 tested sliding gate that has been physically tested in a number of full scale crash tests conducted in accordance with BSi PAS 68 at MIRA and the Transport Research Laboratory (TRL).

The SG1100CR is a tracked sliding gate that provides a high level of security against unauthorised vehicle & pedestrian access.

This versatile high security gate’s unique modular design makes it ideal for global shipping, and is available in range of gate heights, clear widths and infill types, to suit site environments & aesthetics.

SG1100CR vehicle gate, PAS 68 Sliding Gate, crash tested, physically

Key features & benefits

Features

Physically impact tested to PAS 68 criteria
Manufactured from heavy gauge materials
Variable height and clear widths
Manual operating override facility
High quality coating system (minimum galvanised)
Shallow mounting less than 500mm overall depth
Hold to run operation

Benefits

Confidence in proven performance
Strength and durability
Flexibility to suit site requirements
Operational under power failure conditions
Reliable and dependable
Overcomes site depth restrictions
Safe operation

Product overview

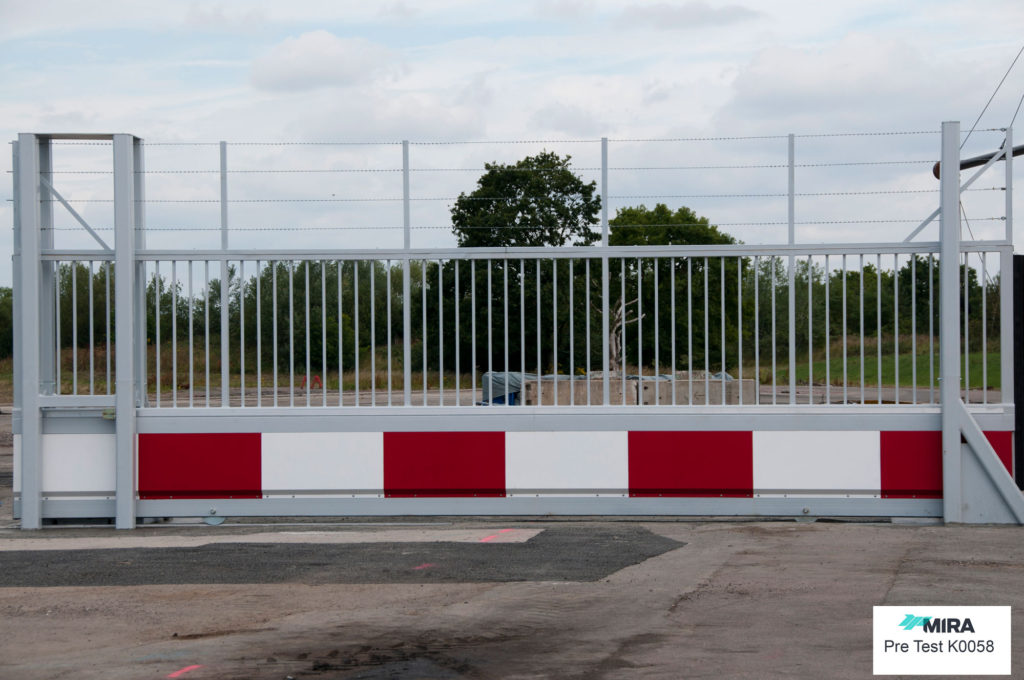

Independently physically impact tested in accordance with the BSi PAS 68 at Mira Ltd, it achieved a PAS 68 classification V/7500(N2)/64/90:0.0/0.0, The physical test was carried out using a 7500Kg truck travelling at 64 kph (40mph), which was crashed into 7m clear width opening gate, It achieved zero penetration and zero debris.

Developed as a Hostile Vehicle Mitigation (HVM) solution, it is able to withstand substantial direct impact forces. This vehicle gate can be used to protect sites from extreme aggressive attacks while maintaining a pedestrian secure environment.

The gate comes with a push-button hold to run control as standard.

The gate can be customised to interface with a wide range of access control equipment to suit specific customer requirements.

Options available

Emergency buttons with lock down
UPS backup for the electrical system
Safety beams
Safety edges
Laser scanners
Serrated / barbed wire toppings
Matching infill panels
Inductive loop systems
Traffic lights and back-indication system

Technical Specification

Physical Dimensions:
Standard gate height:	Height 2400mm – additional razor wire/cladding can be added for additional height Standard sizes – clear width openings/gap of 5m, 6m and 7m Bespoke sizes available on request, subject to conditions, contact our sales department for advice
Basic power requirements:	Subject to gate size and construction
Impact Absorption:	1189KJ
PAS68 Classification:	V/7500(N2)/64/90:0.0/0.0
Tested Model:	Sliding gate with clear opening gap of 7000mm and a height of 2400mm + 1000mm sacrificial razor wire topping = total Overall height of 3400mm and foundation depth of 470mm
Speed of operation:	5.7 seconds per metre (optional high speed operation 2 second per metre is available)
Operating temperature range available (option):	-25°C – +70°C
Construction:	The framework is constructed from fully welded, heavy gauge, steel structures and hi-tensile structural steel.
