Avon EntraLight® Aluminium Sliding Gate

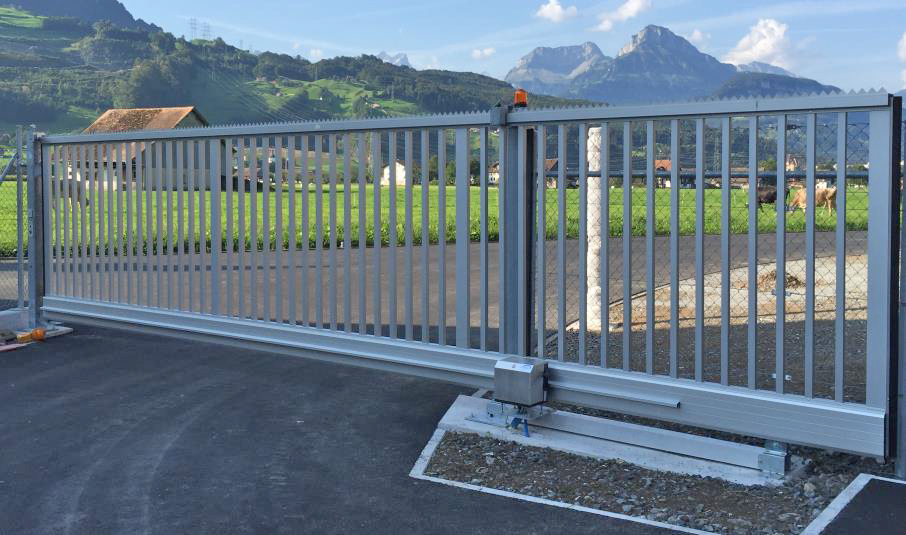

Avon EntraLight® Aluminium Sliding Gates

The Avon EntraLight® Aluminium Sliding Gate is a great alternative to steel gates. Its weight-saving, state-of-the-art design combines high stability with a trackless, smooth, quiet running; even with larger opening width gates.

The Aluminium Sliding Gate has proven reliability, is weather resistant and provides long term functionality.

Finished to the highest standards the EntraLight® can be tailored to customers specific requirements.

It is easy and fast to install delivered as ready-to-install gate units. Clear widths available up to 8m for powered gates and up to 10m for manual gates.

Avon EntraLight Aluminium Sliding Gate
EntraLight Aluminium Sliding Gate

Key features & benefits


  • Silver coloured anodised aluminium with 5 standard RAL colours
  • Pre-assembled drive post
  • Trackless
  • Fast Acting
  • WE-Tronic Light control unit



  • High quality durable finish
  • Simple to install
  • No central roadway excavation
  • High traffic volume
  • Flexibility to interface with all forms of access control
  • Reliable and dependable

Product overview

Smooth & Reliable

Cantilever gates do not require a ground track in the roadway, thus the gate is not affected by cambers, kerbs, debris or adverse weather conditions like snow or ice.

As standard can be finished in natural Aluminium, silver anodised (Eloxal E6/EV1) or painted in our range of standard colours which include RAL 6005 – moss green, RAL 7016 – anthracite grey, RAL 7030 – stone grey, RAL 7035 – light grey or RAL 9010 – pure white.  End post in hot-dip galvanised finish and optional painted as standard.

Quality & Safety

Our gates are finished to a high standard and comply with current safety requirements, as standard six safety edges are fitted and 2 light beams for monitoring passage.

A full site risk assessment should be undertaken prior to the design and installation of the gate, to ensure that all the appropriate safety measures have been addressed.

Control options as standard are hold to run control or alternatively it can be automated OPEN/CLOSE/STOP.

You can customise your requirement with a variety of options and integrations with Access Control systems.

NB Sliding gates are designed to be used with vehicles only and pedestrians access should be provided by an alternative entrance or exit.

Entralight aluminium sliding gate

Options Available

  • Manual Operation (clear width available up to 10m)
  • Anti-climb topping
  • Speed package (up to 0.40 m/s operating speed)
  • Inductive loop systems
  • Intercom & Access Control systems
  • Emergency vehicle keyswitch
  • Flashing permanent/rotating beacon
  • Traffic lights
  • Keypad
  • Remote Control with hand held transmitters
  • Push Button table top control panel
  • Additional safety light beam for HGV height
  • Keyswitches for alternative modes of operation
  • Alternative RAL paint colours

Technical Specification

Gate Height: 1050 – 2050 mm in 200 mm increments*
Clear Width Opening: 3000 – 8000 mm
Infill: SHS 40 mm
Foundation:   Top edge of foundation 90 mm below finished floor level
Drive unit: Electric drive with covered, profile integrated, spring-loaded toothed rack**
Control unit: WE-Tronic Light
Certification: TÜV type-tested according to DIN EN 13241-1
Options: See technical datasheet online

* Incl. 100 mm ground clearance **For power operated version
