Avon Tyre Killers

Avon Tyre Killers

Avon Tyre Killer Barriers are designed for use in high security, high traffic applications. The Tyre Killer and the modular Tyre Killer SHARK are simple to install, highly secure vehicle control barriers; ideally suited for approach entrances to banks, military installations, airports, docks, cash collection depots, government offices or similar.

On approach by an authorised vehicle, the Tyre Killer teeth retract below ground level and are completely unobtrusive, parallel to the road surface, providing safe access for the vehicle. When the vehicle has passed, the teeth return to the active position, ensuring total protection from unauthorised vehicle intrusion. They can support wheeled vehicles with a load bearing capacity up to bridge class SLW 60.

This product is only available for export outside of the UK and the EU.

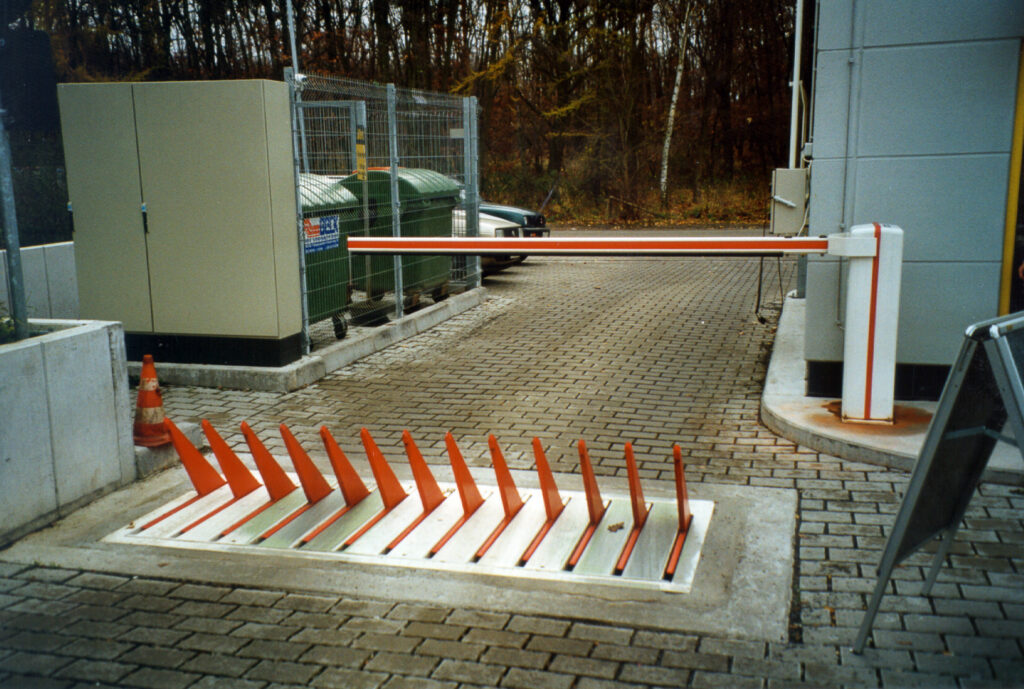

Avon Tyre Killer Barrier

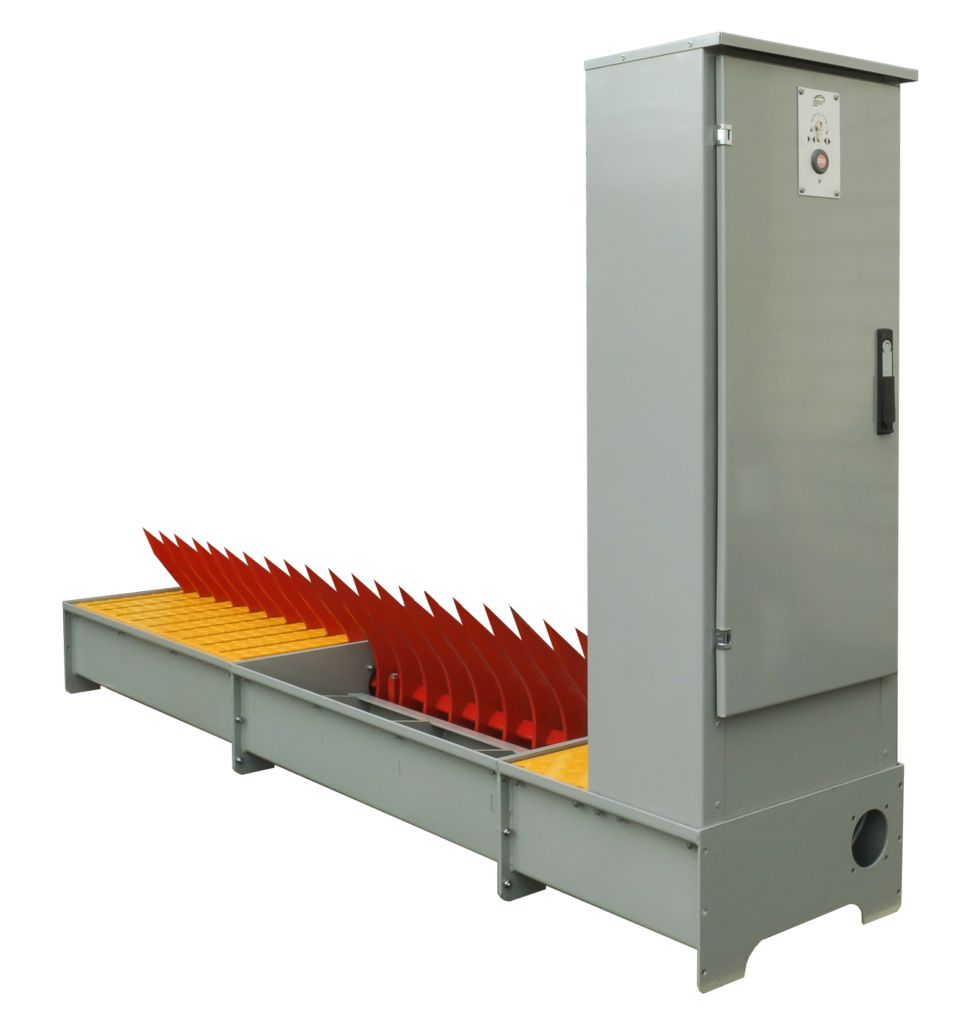

Avon Tyre Killer SHARK

Key features

  • Height in raised position 215-450mm
  • Electro-Mechanical operation (SHARK)
  • Hydraulic operation (Avon Tyre Killer)
  • Manual operation facility
  • Shallow foundation
  • Ready to install unit

Product overview

Avon Tyre Killers and SHARK are available in widths of up to 6m metres. The SHARK consists of coupled blocking modules. As standard both our Avon Tyre Killer and Avon Tyre Killer SHARK are supplied with a three position keyswitch positioned in the drive column. however other access control options are available.

This is a specialist security product and is designed for use with vehicles only and a full site risk assessment must be carried out at design stage to ensure that all relevant safety systems are included.



We recommend that the Tyre Killer is used in conjunction with a rising arm barrier and additional safety devices are used to prevent the barrier operating when an authorised vehicle is stationary over the teeth.



Options available

  • Push button “raise/stop/lower” or key switch “raise/stop/lower”
  • Accumulator incl. rechargeable batteries for 3 movements (RO3)
  • Key switch “fire brigade”
  • Alternative RAL Colours
  • Anti-terror push button (for emergency operation – EO)
  • Light beam system
  • Remote control receiver
  • Hand-held transmitter
  • Additional push button or key switch
  • Single or double loop detector
  • Key switch “automatic on/off”
  • Traffic light red/green, D200
  • LED permanent beacon with flashing function

Technical Specification

Tyre Killer

Blocking Height: 450mm
Blocking width: 2000mm – 6000mm
Operating time: Raising: approx. 2 sec., lowering: approx. 2 sec.
Drive unit: Installed in separate drive cabinet
Installation depth: 900mm
Options: Accumulator incl. rechargeable batteries for 3 movements (RO3)
Operating temperature range: -20°C – +60°C
Colour (standard): Spike axle RAL 3000 flame red
Underground housing RAL 7030 stone grey
Cover plates RAL 1007 daffodil yellow

Tyre Killer SHARK

Blocking Height: 215mm
Blocking width: 2000mm – 6000mm in 500mm increments
Operating time: Raising: < 1 sec   lowering: < 1 sec
Drive unit: Installed on left or right viewed from the outside
Installation depth: 490 mm incl. 190 mm for drainage pipes
Operating temperature range: Control Unit: -10°C – +50°C

Drive Unit: -25°C – +65°C

Colour (standard): Spikes RAL 3000 flame red
Underground housing RAL 7035 light grey
Cover plates RAL 7035 light grey
Drive housing RAL 7035 light grey
Drive column RAL 7035 light grey



Tyre Killers - Resources

Datasheet – Avon Tyre Killers
Format: pdf

Datasheet for Avon Tyre Killers

Tender Description – Avon Tyre Killers
Format: pdf

Tender Description – Avon Tyre Killers

Datasheet – Avon Tyre Killer SHARK
Format: pdf

Datasheet – Avon Tyre Killer SHARK

Tender Description – Avon Tyre Killer SHARK
Format: pdf

Tender Description – Avon Tyre Killer SHARK
