Avon Movable Bollards M50, M30

Avon Movable Bollards M50, M30

Avon Movable Bollards M50, M30 are impact rated automated bollards, designed to allow authorised vehicles to enter or exit a controlled area.

The Avon Movable Bollard M30 has been physically impact rated to the internationally recognised security ratingstandards PAS 68 & IWA 14-1:2013 achieving zero penetration on impact.

The Avon Movable Bollard M50 has been physically impact rated to internationally recognised security rating standards PAS 68, IWA 14-1:2013 and also ASTM F 2656-07.

M50-movable-bollards

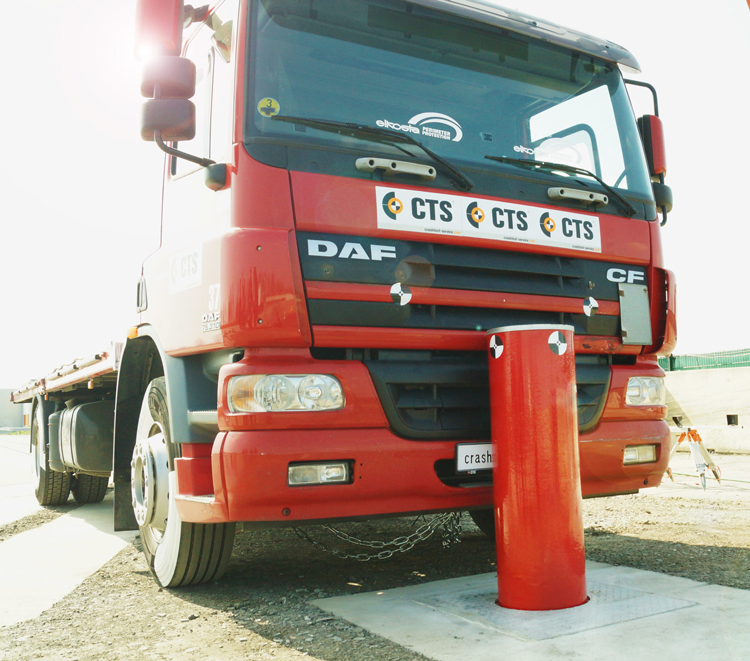

M50 Crash Tested Bollard

Key features & benefits

Features

  • Physically crash tested to internationally recognised security ratings
  • Modern robust design
  • Proven long term performance

Benefits

  • Comprehensive understanding of attack resistance & confidence in individual bollard performance
  • Variety of optional finishes including paint, stainless steel, top lighting
  • Strength and durability

Product overview

The bollards are of robust construction with heavy gauge material and high tensile steel. Their modern design suits the built environment and can be used as physical protection in a wide variety of applications including city centres, public areas, stadiums, data centres and airports.

Avon Movable Bollards M50

Avon Movable Bollards M30

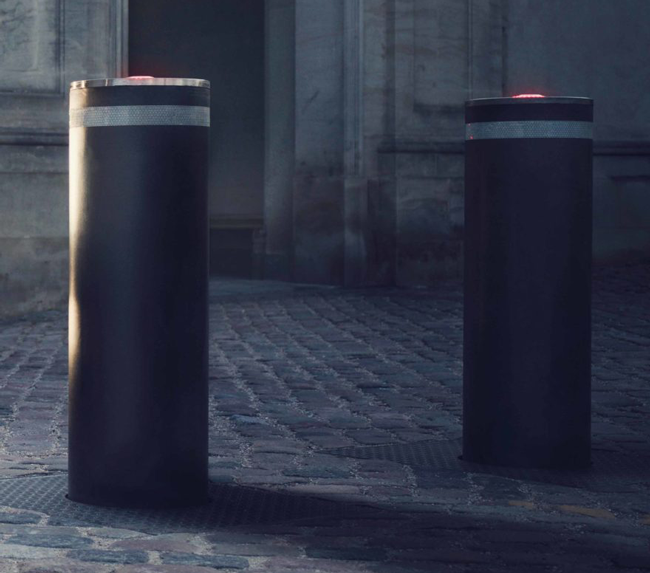

M50 Bllards with LED lights

Options available

  • Bollard top lighting (Red,White, Yellow)
  • Tamper resistance
  • EFO Accumulator with rechargeable battery
  • Heater (up to -30°C)
  • Push Button & Keyswitch options
  • Emergency lock down button
  • Traffic Light Systems
  • Safety light beam systems
  • Flashing or revolving beacon
  • Stainless Steel or alternative RAL colour sleeves

Movable Bollard M50



Security Impact Ratings: ASTM F 2656-07  M50/P2
PAS 68: 2013   V/7500[N3]/80/90:5.2/7.8
IWA 14-1: 2013  V/7200[N3C]/80/90:5.5
Bollard Height: 1000 mm
Diameter: Ø 355 mm
Operating Time: Raising: approx 5-6 sec    Lowering: approx. 3-4 sec
EFO (optional): approx 2-3 sec
Drive unit: Mounted to installation frame
Installation depth: 500 mm – 1800 mm incl. 100 mm road covering
Options: Stainless steel sleeve, top lighting, EFO + RO1



Movable Bollard M30

Security Ratings: PAS 68:2013     V/7500[N2]/48/90:0.0/0.0
IWA 14-1:2013  V/7200[N2A]/48/90:0.4
Bollard Height: 1000 mm
Diameter: Ø 355 mm
Operating Time: Raising: approx 5-6 sec    Lowering: approx. 3-4 sec
EFO (optional): approx 2-3 sec
Drive unit: Mounted to installation frame
Installation depth: 500 mm – 1800 mm incl. 100 mm road covering
Options: Stainless steel sleeve, top lighting, EFO + RO1



Resources Retractable Bollards

Technical Datasheet – Avon Retractable Bollard M50
Format: pdf

Technical Datasheet – Avon Retractable Bollard M50

Technical Datasheet – Avon Retractable Bollard M30
Format: pdf

Technical Datasheet – Avon Retractable Bollard M30

Tender Description Avon Retractable Bollard M50
Format:

Tender Description Avon Retractable Bollard M50

Tender Description Avon Retractable Bollard M30
Format: pdf

Tender Description Avon Retractable Bollard M30

View our other retractable bollards

Static Bollards

Avon Resilience SSF100 Bollard

Avon Scimitar 75/50 Static Bollard

Avon CityProtector Bollard
