Avon Fixed Shallow Mount Bollard M50, M30

Avon Fixed Shallow Mount Bollard M50, M30 are static bollards, designed to protect walkways, pavements and public areas from vehicle encroachment.

The Avon Fixed Shallow Mount Bollard M50 has been physically crash tested as a triple unit to the internationally recognised testing standards PAS 68, IWA 14-1 and ASTM F 2656-07.

Static Bollards are passive bollards that sit fixed in the ground. They are also available as a removable bollard (option), Contact our sales team

The bollards can be installed to form a discreet perimeter of protection around building infrastructure, creating a stand-off distance. Stand-off distance is vital to reducing the risk of building damage in the event of a vehicle borne explosive device activating.

A line of crash tested fixed bollards will prevent a vehicle from driving at force into an unauthorised area, such as an airport terminal, sports stadium or a pedestrian retail area, whilst still allowing members of the public to move freely.

M50 Static Bollard

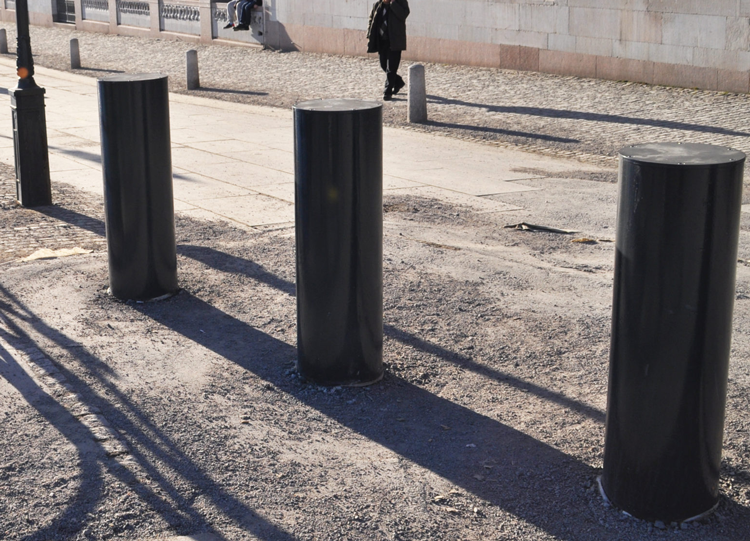

M30 Static Bollard

Key features & benefits

Features

  • Physically impact tested
  • Unobtrusive appearance
  • Manufactured from heavy gauge materials
  • Shallow foundation

Benefits

  • Comprehensive understanding of attack resistance & confidence in bollard performance
  • Variety of finishes including paint, stainless steel sleeves
  • Strength and durability
  • Reduced installation costs

Product Overview

Crash tested bollards are ideal to discreetly protect areas where aesthetics and public perception are a consideration. An unobtrusive hostile vehicle mitigation product that can be finished to complement surrounding architecture as well as interfacing with a wider range of high security vehicle control equipment.

M50 Bllards with LED lights

Options available

  • Bollard top lighting (Red,White, Yellow)
  • Alternative RAL colour sleeves
  • Stainless steel sleeves
  • Stainless steel top plates

Product Overview

Avon Fixed Shallow Mount Bollard M50

Certification: PAS 68 V/7500[N3]/80/90:0.4/15.4

IWA 14-1 V/7200[N3C]/80/90:0.8

ASTM F2656-07 M50/P1 (triple unit)

Bollard Height: 1100 mm
Diameter: Ø 355 mm
Installation Depth: 500 mm incl 100mm road covering
Standard Finishes RAL 6005 moss green, RAL 7016 anthracite grey, RAL 7030 stone grey,
RAL 7035 light grey or RAL 9010 pure white
Options: Stainless steel sleeve, top lighting



Avon Fixed Shallow Mount Bollard M30

Certification: Vehicle Impact Simulation M30/P1 (triple unit)
Bollard Height: 1100 mm
Diameter: Ø 355 mm
Installation Depth: 500 mm incl 100mm road covering
Standard Finishes RAL 6005 moss green, RAL 7016 anthracite grey, RAL 7030 stone grey,
RAL 7035 light grey or RAL 9010 pure white
Options: Stainless steel sleeve, top lighting



Resources Static Bollards

Tender Description Avon Fixed Bollard M30 1000
Format: pdf

Tender Description Avon Fixed Bollard M30 1000

Tender Description Avon Fixed Bollard M30 1100
Format: pdf

Tender Description Avon Fixed Bollard M30 1100

Tender Description Avon Fixed Bollard M50
Format: pdf

Tender Description Avon Fixed Bollard M50

Technical Datasheet Avon Fixed Bollard M50
Format: pdf

Technical Datasheet Avon Fixed Bollard M50

Technical Datasheet Avon Removable Bollard M50
Format: pdf

Technical Datasheet Avon Removable Bollard M50

Technical Datasheet – Avon Fixed Shallow Mount Bollard M30
Format: pdf

Technical Datasheet – Avon Fixed Shallow Mount Bollard M30

Other Static Bollards

Shallow Bollards

Avon CityProtector Bollard

Avon Resilience SSF100 Bollard

Avon Scimitar 75/30 Static Bollard
