Avon EntraQuick PU30 Crash Rated Bi-Folding Gate

Avon EntraQuick PU30 Bi-Folding Gate

The Avon EntraQuick PU30 Bi-Folding Gate is a fast acting, impact rated, single leaf bi-folding gate. Impact rated to PAS 68 and IWA 14-1 standards, this innovative speed gate offers full height perimeter protection combined with fast operation to allow authorised vehicles quick passage into a secure area.

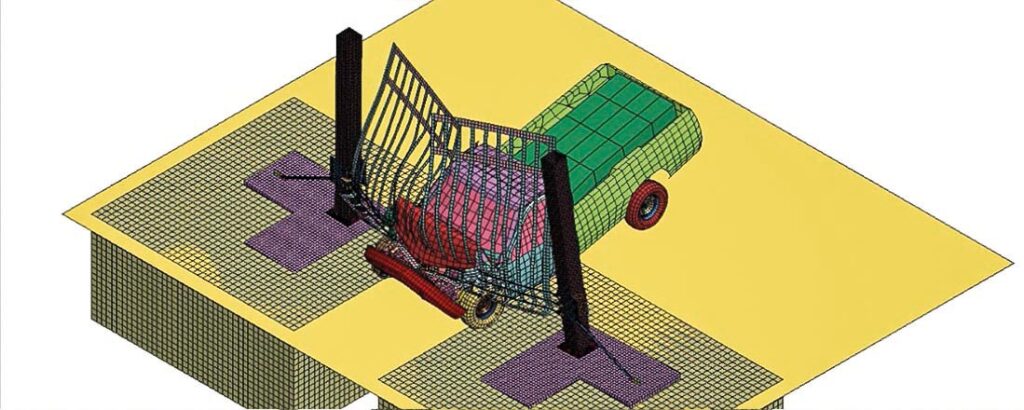

The EntraQuick PU30 gate design incorporates a unique arrestor system that has been physically crash tested and has successfully stopped an N1G class vehicle (4×4 pick up truck) travelling at 30mph (48kph).

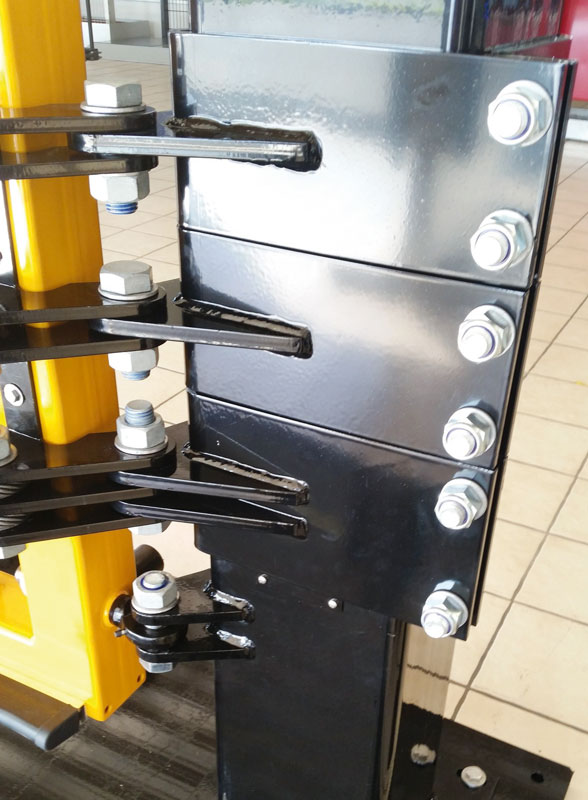

It is designed for continuous operation and is ideal for higher volumes of traffic. The gate is securely locked in the closed position via a drive mechanism supported by the interlocking of the gate leaf and receiving post through an infeed roller and reception fork.

This trackless speed gate doesn’t require any central roadway excavation or have any overhead guidance rails making it ideal for use with larger vehicles.  Its simple but effective design is exceptionally sturdy and reliable requiring minimal maintenance.

Avon EntraQuick PU30 Bi-fold Gate
Avon PU30 Crash Rated Bi-fold gate

Key features & benefits

Features

  • Impact Rated to both PAS 68: 2013 & IWA 14-1:2013
  • Anti-Corrosion Protection Coating
  • Pre-assembled drive post and folding leaf units
  • Trackless
  • Fast Acting



Benefits

  • Proven High Security Protection
  • High Quality Finish (5 standard RAL colours)
  • Simple to install
  • No central roadway excavation
  • High traffic volume

Contact us for a quotation

Avon EntraQuick Gates

To find out more about our EntraQuick Gates

  • This field is for validation purposes and should be left unchanged.

Proven Performance

Product Overview

Fast & Secure

This impact rated high speed bi-folding gate enables fast opening and closing for each vehicle passage, managing high volumes of traffic whilst still maintaining a secure environment against unauthorised vehicles and pedestrians.

Full height perimeter protection is created in the closed position, its smart design provides a stable operation with no additional floor lock in the closed position necessary.

Safety & Certification

As standard, gates are fitted with relevant compliant safety systems including safety edges and light beams. EntraQuick Gates are certified Type-tested by the notified body TÜV Nord.

A full site risk assessment should be undertaken prior to the design and installation of the gate, to ensure that all the appropriate safety measures have been addressed.

IWA 14-1 Bifold speed gate

Options available

  • Inductive loop systems
  • Intercom systems
  • Flashing permanent/rotating beacon
  • Traffic lights
  • Push Button table top control panel
  • Additional safety light beam for HGV height
  • Keyswitches for modes of operation
  • Alternative RAL paint colours

Technical Specification



                              Avon EntraQuick PU30 Bi-Folding Gate

Product

Single leaf Quick Folding Gate with gate leaf, drive post, receiving

post, arrestor system, electro-mechanical drive and control unit

Test classification

PAS 68:2013  V/2500[N1G]/48/90/1.2/0.0

IWA 14-1:2013  V/2500[N1G]/48/90/1.3

tested with 4 m clear width

Clear opening width

2000 mm – 4000 mm in 500 mm increments

Gate height

2050 mm, 2550 mm and 3050 mm

Operating speed

max. 0.5 m/s

Installation depth

1100 mm incl. 200 mm road covering

Colours (Standard)

RAL 6005 – moss green, RAL 7016 – anthracite grey, RAL 7030 – stone grey, RAL 7035 – light grey or RAL 9010 – pure white

End post in hot-dip galvanised finish as standard

Drive unit:

Mounted to drive post

Options

Anti-climbing device, type of gate infill, alternative RAL Paint options, Induction loops, HGV height safety beam



Avon EntraQuick PU30 Impact Rated Bi-Folding Gate

Tender Description Bi-folding Gate EntraQuick PU30
Format: pdf

Crash Rated Bi-folding Gate EntraQuick PU30 – Tender Description
