Avon Wedge II Road Blocker

Avon Wedge II Road Blocker

Avon Wedge II Road Blocker is a Hostile Vehicle Mitigation (HVM) solution and provides maximum security for highly sensitive vehicle access points, providing protection against unauthorised vehicles. This shallow foundation road blocker is ideal where deeper foundations are not possible / practical.

With a foundation depth of just 300mm inclusive of the 100mm road surface, the Avon Wedge II has been designed to reduce installation costs significantly by having a shallow foundation and a decreased foundation foot print.

The road blocker has a blocking segment with a raised height of 1000mm and has been physically tested to PAS 68, IWA14-1 and also the US standard ASTM F2656-15 achieving zero penetration in all tests.

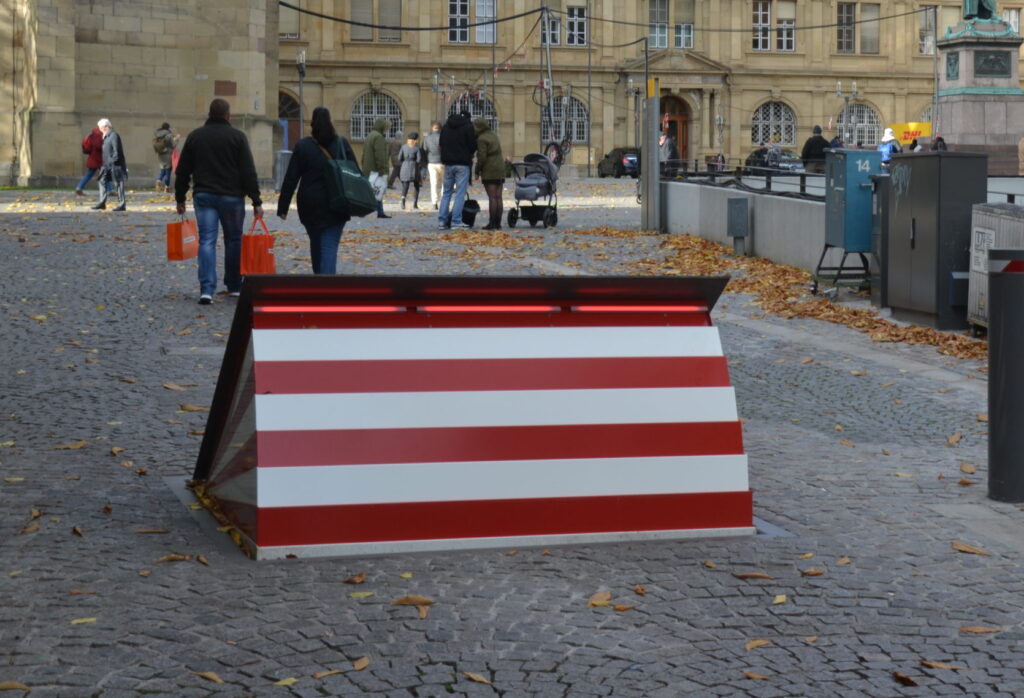

Avon Wedge II Road Blocker

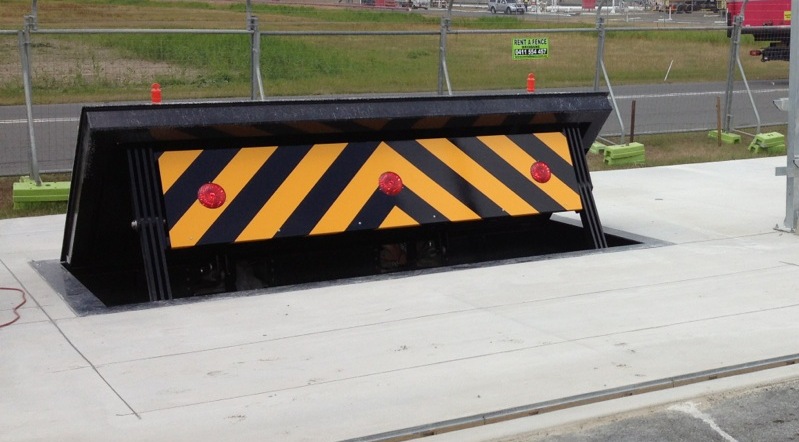

Avon Wedge II with skirt

Key features & benefits

Features

  • Physically impact tested to PAS 68, IWA 14-1 & ASTM F2656
  • Zero Penetration
  • Shallow foundation 300mm overall depth
  • WE-Tronic II control unit
  • Manual hand pump facility
  • Manufactured from heavy gauge material

Benefits

  • Confidence in proven performance
  • Assurance of physical protection
  • Low cost installation
  • Reliability and low maintenance
  • Operational under power failure conditions
  • Strength and durability

Product overview

The Avon Wedge II is designed to guarantee a high level of security.  It can be installed as a single unit or in combination with other products (e.g. barriers, gates, tyre killers or bollards).  Its an ideal product for an airlock or sluice arrangement to create a vehicle checking point for extra security checks.

Available in widths from 2-4m in 500mm increments, the Avon Wedge II is a flat unit that is easily transported and is ready to install with separate drive cabinets which can be located in the secure side of your perimeter line.



Where the blockers control point is remote from the installation, we strongly recommend the fitting of a recordable CCTV system, traffic lights and inductive loop systems.

For safety reasons pedestrians, cyclists and motorcycles are advised not to use a blocker controlled roadway, additional safety measures can be incorporated into the blocker system if required.

This is a specialist high security product and is designed for use with vehicles only and a full site risk assessment must be carried out at design stage to ensure that all relevant safety systems are included.

Avon Wedge II with safety skirt

Options available

  • Safety Skirt or Front Cover
  • LED-strip lighting (red)
  • Paint options
  • Emergency fast raise system (EFO)
  • Emergency buttons with lock down
  • Accumulator and rechargeable battery pack for three movement cycles (RO3)
    with charged accumulator
  • Access and intercom systems
  • Flashing permanent beacon or revolving beacon
  • Alarm horn for outdoor control cabinet
  • Inductive loop systems
  • Traffic lights
  • Interlocking systems to give air-lock/sluice type protection on sites with higher threat levels

Avon Wedge II Road Blocker - Resources

Tender Description Avon Wedge II Road Blocker
Format: pdf

Tender Description Avon Wedge II Road Blocker

Technical Datasheet Avon Wedge II Road Blocker
Format: pdf

Technical Datasheet Avon Wedge II Road Blocker

Technical Specification



Certification
PAS 68 V/7500[N3]/80/90:0.0/20.7  – 4m blocking width
IWA 14-1  V/7200[N3C]/80/90:0.0 – 4m blocking width
ASTM F2656-15 M50/P1 – 2m blocking width
Raised height of blocking segment 1000mm
Blocker widths available 2-4 metres in 500mm increments
Speed of operation: Approx 3.5 seconds to raise or lower
Emergency Fast Operation (EFO) (optional) Approx 1 second
Drive unit Installed in a separate drive cabinet
Installation depth 300mm incl 100mm road coverin
Options Safety skirt, LED strip lighting, EFO + R03
