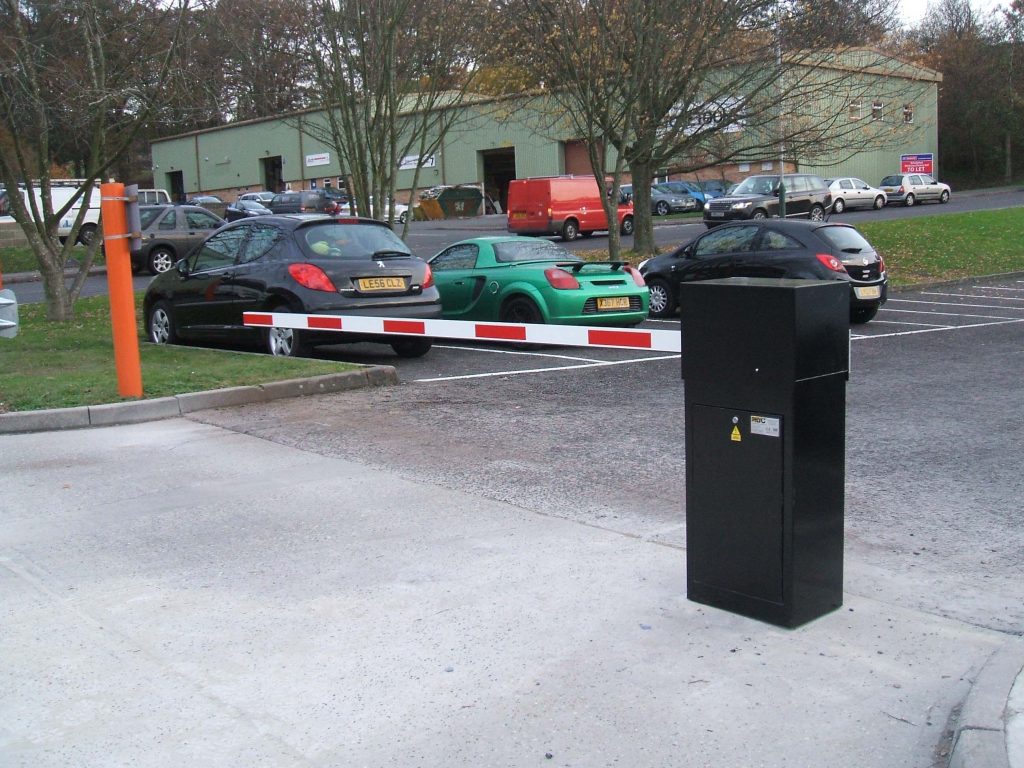

The Avon EB450 Parking Barrier is an ideal automatic rising arm barrier to control vehicle access for medium to high usage car parks. Its proven 100% duty cycling makes it a reliable and durable barrier that can easily integrate with revenue collection and access control systems.
The barrier stands 1135mm above foundation level, with the boom 840mm (to underside) above barrier cabinet foundation level.
The barrier arm (boom) arm has a maximum length of 4m and is a 76 x 38mm rectangular extruded aluminium section that is white powder coated with red fascal striping as standard (black and yellow option available)
Key features & benefits
The all steel cabinet houses the heavy duty motor plate permanent capacitor 4 pole T.E.F.C. motor, which powers the sinusoidal drive mechanism via an industrial grade low ratio gearbox. Two heavy duty bearings support the drive shaft; this having 2 machined cams to activate the adjustable limit switches to control the boom travel.
The hinged/removable lockable steel top cover provides access to the drive mechanism. The cabinet houses the barrier ‘parking logic’ control panel, providing the necessary power supply isolator, fuses, thermal overload trips and motor contactors.
An integral support is provided to maintain the aluminium boom in the horizontal position.
For safety reasons pedestrians, cyclists and motorcycles are advised not to use a barrier controlled roadway, additional safety measures can be incorporated into the barrier system if required. The barrier can be interfaced with existing or new access control systems.
|Physical Dimensions:||Barrier Cabinet – 305mm W x 460mm D x 1135mm H|
|Barrier Arm:||4m max Rectangular extruded aluminium 76 x 38mm|
|Boom Height:||965mm underside of boom to road surface (125mm kerb)|
|Basic Power requirements:||230v single phase, 50Hz, 6 amp (other voltages available)|
|Control Voltage:||S.E.L.V 24V|
|Speed of operation:||2.4 Seconds to raise or lower|
|Operating temperature range available (option):||-25°C – +70°C|
|Approx weight:||105 kg|
|Construction:||The all steel cabinet and cover are shot blasted, to give a clean grease free surface providing maximum keying effect for the two pack high zinc primer, 40 microns followed by a yellow (RAL1007 other options available) textured polyester powder coated top coat, 40 microns.
Rectangular extruded aluminium 76 x 38mm white powder coated with red fascal striping (black and yellow option available) Max length 4m. Booms are mounted on the right hand as standard unless specified.
The barrier foundation should consist of grade C25 concrete and it is recommended that the barrier is secured to the foundation using 4 M12 x 160mm chemical anchors. The installation of ducts for cabling is dependent upon the control criteria.
