The Avon Cedar Gate is a PAS68 impact tested security gate originally designed and developed around the Newey barrier and Avon MDA barrier, and as a consequence, the Cedar Gate is now available up to 6 metres in width, therefore making it a versatile yet simple method of achieving a high level of vehicle access protection.
The Avon Cedar Gate provides a cost effective means of securing an entry or exit vehicle point yet still retaining a high level of protection against an agressive hostile vehicle attack.
It is a manually operated lifting gate which is counterbalanced by weights to enable ease of lifting. a ideal for low volumes of traffic flow or where the access point is used infrequently.
Key features & benefits

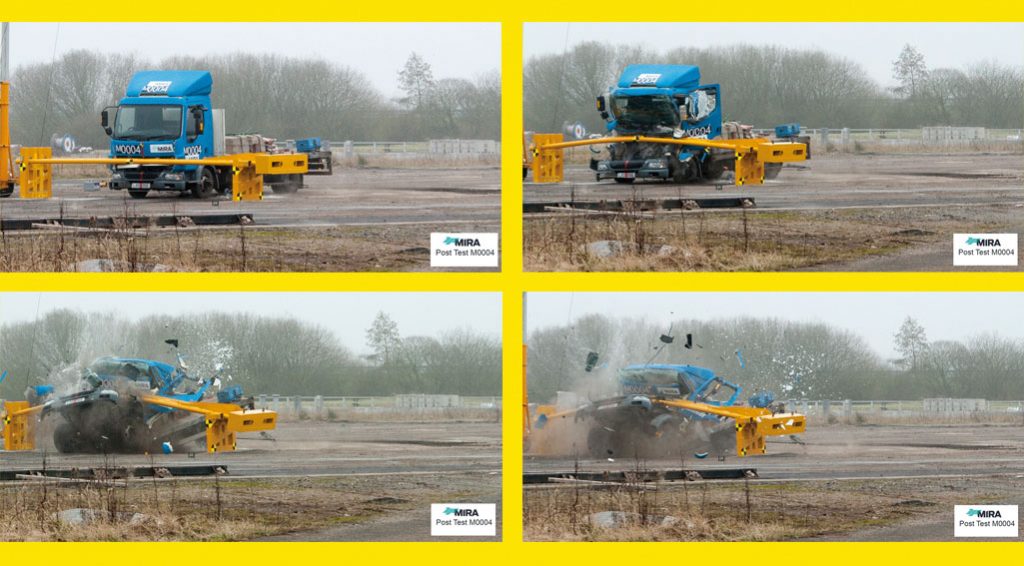

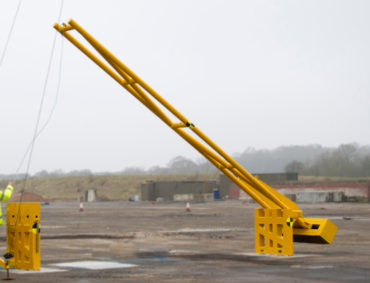

The gate has been physically impact tested independently a number of times, in accordance with PAS 68 using 7500kg N2 class vehicle travelling at 48kph (30mph) by the Transport Research Laboratory (TRL) and MIRA Ltd.
The Cedar Gate has achieved PAS 68 Classifications:
V/7500(N2)/48/90:0.3/0.0 – 6m model
V/7500(N2)/48/90:0/0 – 4.5m model
Impact tests have included 3 metre, 4.5 metre & 6 metre clear width opening models of the gate providing a physical protection to sites from hostile attack.
Its simple yet effective design makes it easy for local contractors to install and is ideal for protecting infrastucture in remote locations or where power is not available.

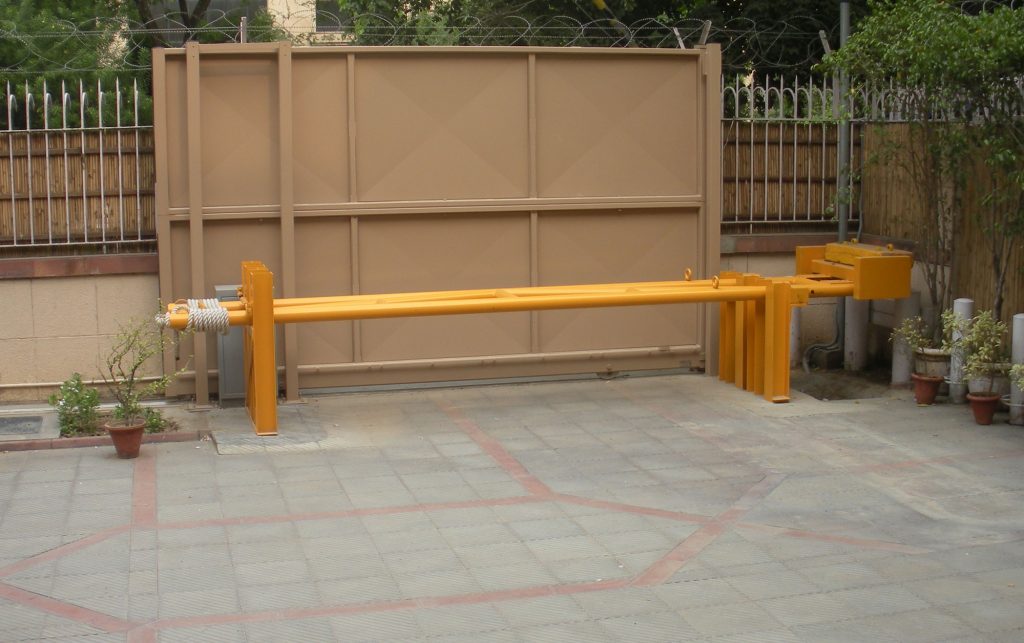

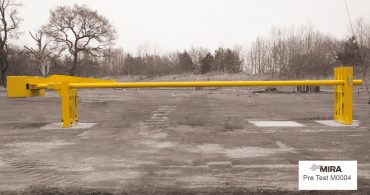

The arm sits 900mm above the roadway and is supported by 2 side support frames. The gate is counterweighted for ease of operation and can be fitted with a magnetic locking mechanism (option) to secure the barrier in the lowered / closed position.
|Physical Dimensions:||900mm H x 1800 mm D x 500 mm H|
|Gate Aperture:||3m – 6m max|
|Impact Absorption:||667KJ (operational immediately after impact)|
|PAS 68 Classification:||V/7500(N2)/48/90:0.3/0.0 – 6m model|
|Tested Model:||3m, 4.5m & 6m Gate aperture|
|Construction:||The Boom Catcher Frames are fabricated from heavy structural steel sections, which are anchored into the foundations: they are designed to support the boom in the lowered position and to take a full impact load. The barrier is constructed from heavy duty steel.|
Datasheet – Avon Cedar Gate
Datasheet – Avon Cedar Gate. A cost effective means of securing an entry/exit vehicle access point, whilst still offering a high level of protection.
Drawings -Avon Cedar Gate
General arrangement drawings for PAS 68 Cedar Gate
