Avon Vehicle Height Restrictors

Vehicle Height Restrictors

Avon vehicle and car park height restriction barriers have been developed to provide a robust and cost effective means of restricting the height of vehicles allowed into specific areas, such as car parks.

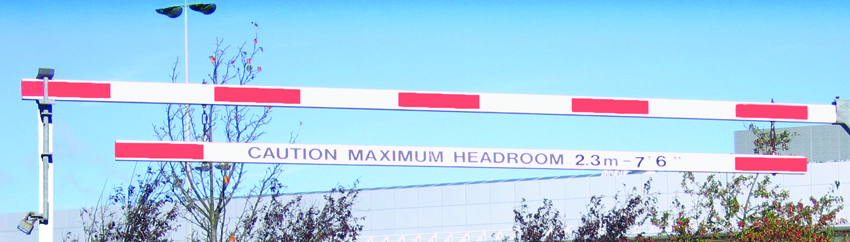

The height restriction barriers consist of all steel construction coated white with a white powder coated aluminium arm with red fascal markings and knocking arm for driver warning. The Height Restrictors triangular steel arm carrier is mounted on the hinges of the main support post which in turn supports the arm. The height restriction barriers knocking arm is suspended by adjustable links in order to adjust the height on site.

Dual Height Restrictor Arms with central locking mechanisms can be provided to control wider roadways.

The installation is to a preformed concrete base, the vehicle restrictor base is just bolted to the ground.

Avon vehicle and car park height restriction barriers

Key features & benefits

Features

  • Robust construction
  • Modular design
  • Multi process coating specification
  • High visibility



Benefits

  • Simple to install
  • Spares available
  • Durable
  • Easy to maintain

Product overview

The height restrictor is available as a fixed or opening restrictor and is a simple & economic means of ensuring that vehicles above a certain height do not have access to a roadway or parking area.

Avon Opening Height Restrictor

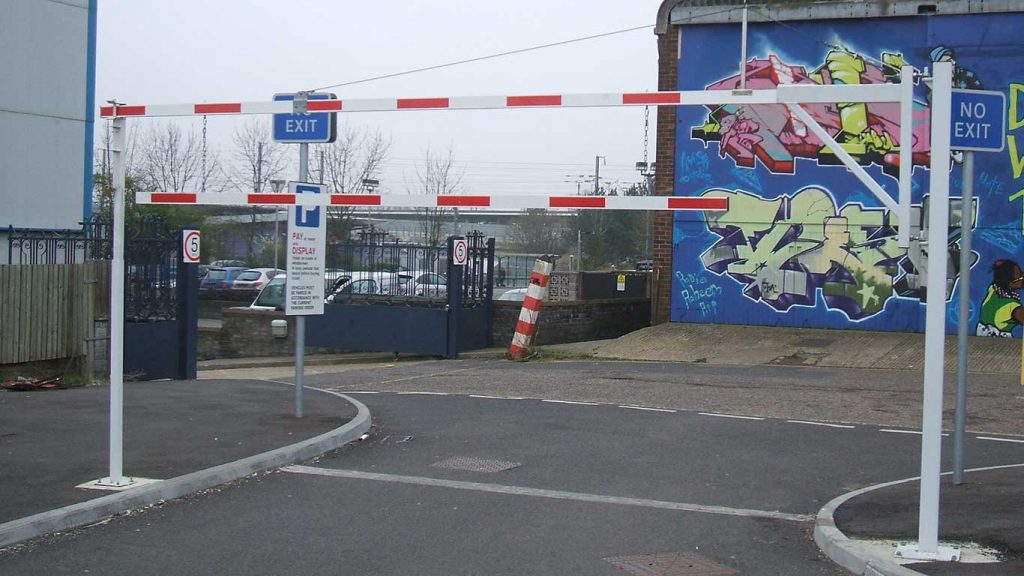

The opening height restrictor consists of all steel construction coated white, (as standard), with a white powder coated aluminium arm with red fascal markings, and a knocking bar (optional) suspended by adjustable links, which can be altered on site. The other end of the support arm is secured in a catcher post, which is height adjustable, to take into account variations in the road camber. The arm is locked into the catcher post, through a padlockable, elongated bar which allows control from normal pedestrian height. A second catcher post is provided to lock the arm in the open position.

Avon Fixed Height Restrictor

The fixed height restrictor, like our opening unit consists of all steel construction coated white, (as standard), with a white powder coated aluminium arm with red fascal markings, and a knocking bar (optional) suspended by adjustable links, which can be altered on site.

Avon Height Restrictor

Options available

  • Additional catcher posts
  • Grouted in version available
  • Over 180° degree opening
  • Customised wording on knocking boom
  • Alternative paint colours available

Vehicle Height Restrictor - Resources

Datasheet – Avon Vehicle Height Restrictor
Format: pdf

Datasheet – Avon Vehicle Height Restrictor

Drawings – Avon Vehicle Height Restrictor
Format: pdf

Drawings for Avon Vehicle Height Restrictor

Technical Specification

Physical Dimensions:
Standard Top Boom Arm
Height:
2627mm from road surface to underside of boom (125mm kerbing)
Boom Construction:76mm x 38mm – Aluminium section white powder coated finish with red fascal stripes
Boom Max Length:7m – Booms over 5m in length a straining wire is supplied
Construction:100mm x 100mm x 5mm mild steel square hollow section vertical posts
100mm x 50mm RHS mild steel hinged section with 50mm x 50mm RHS mild steel cross brace welded diagonally to corner
Installation:Bolted down as standard (option – grouted in)
Restrictor foundation 800mm x 800mm x 800mm – C35 concrete recommended
4 x M16 x 190 chemical anchor bolts
Catcher foundation 400mm x 400mm x 800mm – C35 concrete recommended
4 x M12 x 160 chemical anchor bolts
