Avon RB680 Road Blocker

RB680 Road Blocker

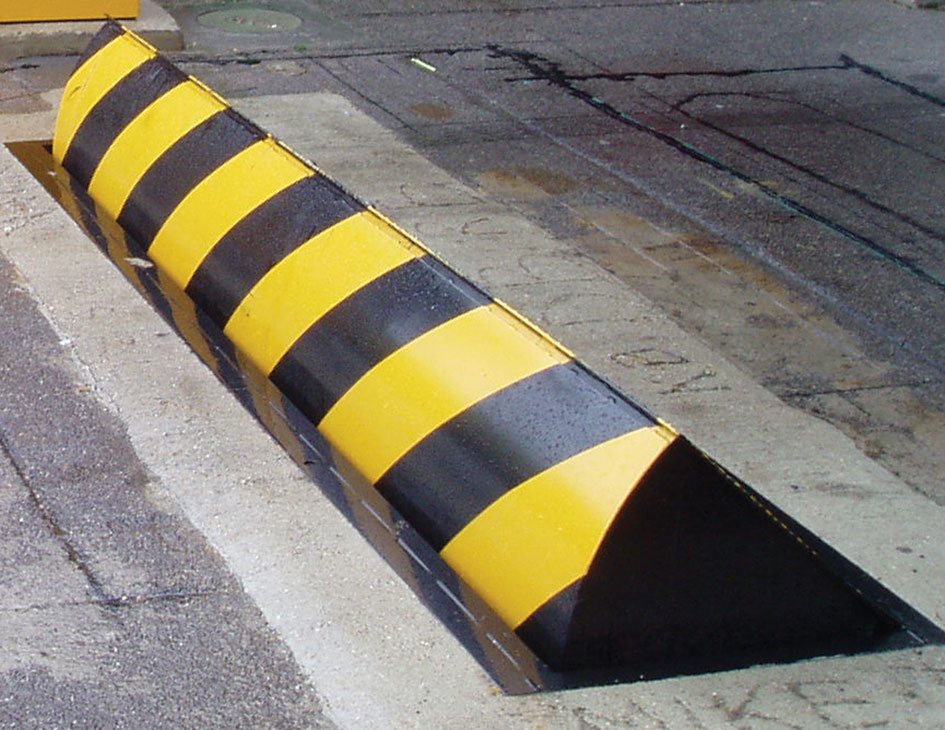

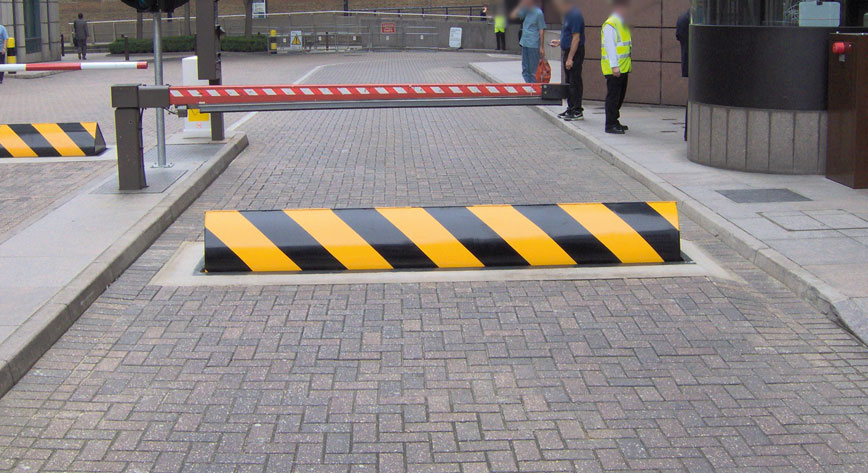

The Avon RB680 Road Blocker comes in a variety of widths to suit specific site requirements, with a blocking segment height of 350mm; it provides an effective method of securely controlling vehicle access to restricted area as an alternative to a rising arm barrier or sliding gate. It is ideal for industrial or commercial sites where larger vehicles operate, providing a visual and physical deterrent to vehicle drivers.

Industrial road blocker
Road Blocker for security

Key features & benefits

Features

  • Vandal resistant
  • Constructed to comply with BS6571 part 4
  • High quality coating system
  • Manual hand pump facility
  • 3 Phase 50Hz supply 415V



Benefits

  • Durability
  • Reliability
  • Service spares
  • Ease of installation
  • Manual operation in the event of power failure

Product overview

The road blocker is ideal as a robust alternative to a rising arm barrier and is available in widths up to 4m (increments of 500mm), providing physical vehicle control and security for an establishment.

The road blocker is constructed from heavy welded steel section to provide sufficient strength to exceed British axle load and complies with BS6571 part 4.

The road blocker is operated by a hydraulic ram with the power unit (HPU) positioned locally within an externally rated cabinet.

It comes with a push-button hold to run control as standard, however it can be customised to interface with a wide range of access control equipment to suit specific customer requirements.

This is a specialist security product and is designed for use with vehicles only and a full site risk assessment must be carried out at design stage to ensure that all relevant safety systems are included. Where the blockers control point is remote from the installation, we strongly recommend the fitting of a recordable CCTV system. For safety reasons pedestrians, cyclists and motorcycles should not to use a blocker controlled roadway.



Security Road Blockers

Options available

  • Access control and intercom systems
  • Emergency buttons with lock down
  • UPS backup for the electrical system
  • STOP / NO Entry warning signs
  • Accumulator systems for hydraulic operation in power failure conditions
  • Inductive loop systems
  • Traffic lights and back-indications systems
  • Integral inset warning lights in blocking segment

Technical Specification

Physical Dimensions:2m Blocker – 2150mm W x 735mm D x 570mm H (350mm H raised)
Basic Power Requirements: 3-Phase 415vAC, 50Hz, 20 Amps ( other voltages are available)
Control Voltage:S.E.L.V 24v
Performance:   Loading – 20 Tonnes
Speed of operation: 6-8 Seconds to raise or lower
Operating temperature range available (option):-25°C – +70°C
Construction:The supporting framework is constructed from fully welded, heavy gauge, structural steel completely encased with steel sheets to provide a self-shuttered module. Sub-surface fixing points ensure the blocker is completely secured to its foundation.

RB680 Road Blocker - Resources

Datasheet – Avon RB680 Road Blocker
Format: pdf

Datasheet for the Avon RB680 Road Blocker an effective method of securely controlling vehicle access to restricted area.

Drawings – Avon RB680 Road Blocker
Format: pdf

General arrangement drawings for the Avon RB680 Road Blocker, an effective method of securely controlling vehicle access to restricted area.

Drawings – Avon RB680 Road Blocker Foundation CAD Drawing (dwg)
Format: dwg

Drawings – Avon RB680 Road Blocker Foundation CAD Drawing (dwg)
