Avon RB700 Road Blocker

RB700 Road Blocker

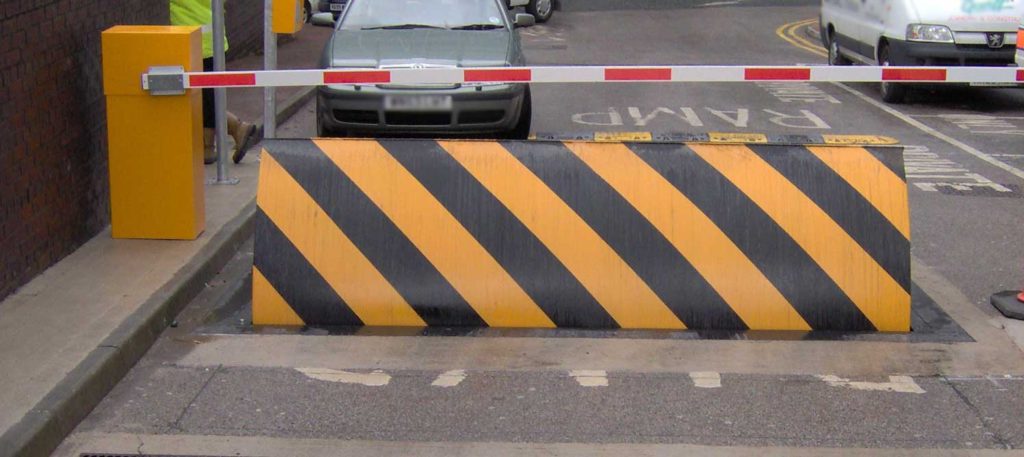

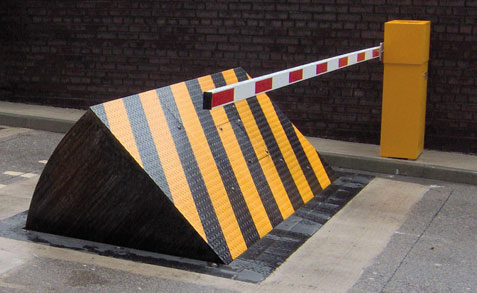

The Avon RB700 Road Blocker comes in a variety of widths to suit specific site requirements, with a blocking segment height of 700mm; it provides an effective method of securely controlling vehicle access to a restricted area.

It is an ideal solution for sites that require a higher level of security; the distinctive markings of the road blocker provide a visual deterrent to unauthorised vehicles.

Road Blocker, Avon Road Blockers, Security Road Blocker
RB700 Road Blocke

Key features & benefits

Features

  • Vandal resistant
  • Constructed to comply with BS6571 part 4
  • High quality coating system
  • Manual hand pump facility
  • 3 Phase 50Hz supply 415V



Benefits

  • Durability
  • Reliability
  • Service spares
  • Ease of installation
  • Manual operation in the event of power failure

Product overview

The road blocker is ideal as a robust alternative to a fully impact tested road blocker it is available in widths up to 6m (increments of 500mm) and provides physical vehicle control and security for an establishment.

The blocker is operated by a hydraulic ram with the power unit (HPU) positioned locally within an externally rated cabinet. The blocker mechanism is encased in a sheet steel enclosure and has access points for onward connection to ducting for hydraulic hoses and control cables.

The blocker is constructed from heavy welded steel section to provide sufficient strength to exceed British axle loads.

The heavy duty durbar top plate is coated with safety markings, with removable access covers to enable efficient installation and servicing.

The blocker comes with a push-button control hold as standard, however it can be customised to interface with a wide range of access control equipment to suit specific customer requirements.

For safety reasons pedestrians, cyclists and motorcycles are advised not to use a blocker controlled roadway, additional safety measures can be incorporated into the blocker system if required. Where the road blocker control point is remote from the installation, we strongly recommend the fitting of a recordable CCTV system, traffic lights and safety inductive loop systems.

This is a specialist security product and is designed for use with vehicles only and a full site risk assessment must be carried out at design stage to ensure that all relevant safety systems are included.

Security Road blocker

Options available

  • Access control and intercom systems
  • Emergency buttons with lock down
  • UPS backup for the electrical system
  • STOP / NO Entry warning signs
  • Accumulator systems for hydraulic operation in power failure conditions
  • Inductive loop systems
  • Traffic lights and back-indications systems
  • Integral inset warning lights in blocking segment

Technical Specification

Physical Dimensions: 2m Road Blocker – 2130mm Wx 1100mm D x 1160mm H (700mm H raised)
Basic Power Requirements: 3-Phase 415vAC, 50Hz, 20 Amps ( other voltages are available)
Control Voltage: S.E.L.V 24v
Performance:   Loading – 20 Tonnes
Speed of operation: 6-8 Seconds to raise or lower
Operating temperature range available (option): -25°C – +70°C
Construction: The supporting framework is constructed from fully welded, heavy gauge, structural steel completely encased with steel sheets to provide a self-shuttered module. Sub-surface fixing points ensure the blocker is completely secured to its foundation.

RB700 Road Blocker - Resources

Drawings – Avon RB700 Road Blocker
Format: pdf

General arrangement drawings for the RB700 Road Blocker

Datasheet – Avon RB700 Road Blocker
Format: pdf

Datasheet for RB700 Road Blocker
